- Single Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors. Up to 270W TDP.
- 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel DCPMM
- 2 PCIe 4.0 x16 (LP) slots, 2 PCIe 4.0 x8 (LP) slots
- Intel Ethernet Controller X550 2x 10GbE RJ45
- 36x Hot-swap 3.5″ SAS3/SATA3 drive bays (24 front + 12 rear), Onboard 1x NVMe/SATA M.2; 2x Hot-swap 2.5″ NVMe/SATA (rear, optional); 2x Internal fixed bay support up to 4x 2.5″ drive bays (optional)
- Redundant Titanium 1200W Power Supply

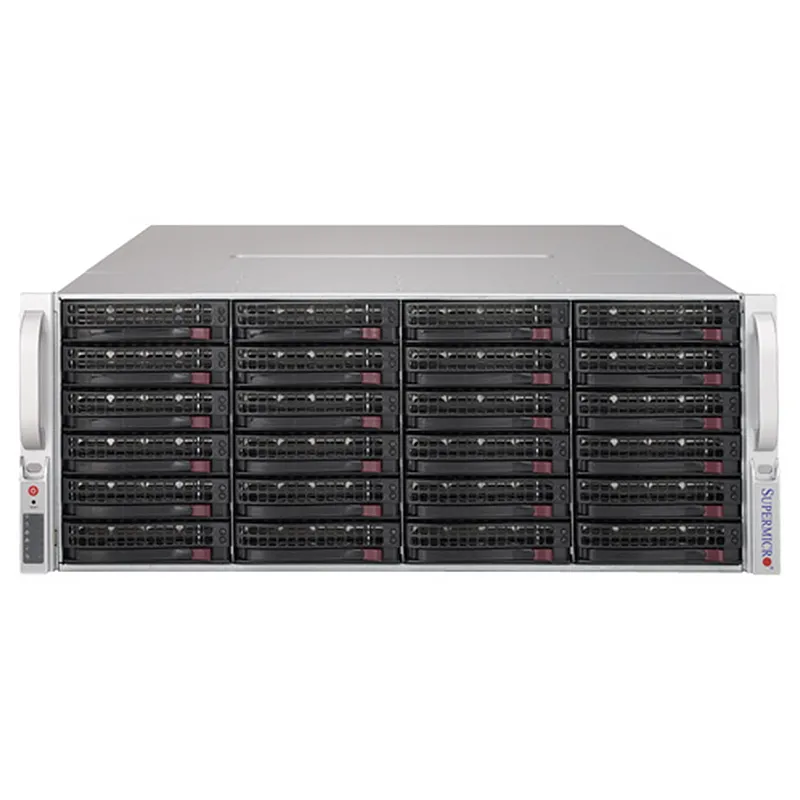

UP Storage SuperServer SSG-540P-E1CTR36H
$Quote1 Piece(MOQ)
| Note： | Supports up to 270W TDP CPUs (Air Cooled) |
|---|---|
| Network Connectivity： | 2x 10GbE BaseT with Intel X550 |
| Memory： | Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| IPMI： | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Core Count： | Up to 40C/80T; Up to 60MB Cache per CPU |
| Note | Supports up to 270W TDP CPUs (Air Cooled) |
|---|---|
| Network Connectivity | 2x 10GbE BaseT with Intel X550 |
| Memory | Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Core Count | Up to 40C/80T; Up to 60MB Cache per CPU |
| CPU | Single Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors |
| Width | 17.2" (437mm) |
| Weight | Net Weight: 66.5 lbs (29.7 kg) Gross Weight: 102.5 lbs (46.4 kg) |
| Motherboard | Super X12SPI-TF |
| Package | 17.5" (H) x 27" (W) x 39.5" (D) |
| Form Factors | 4U |
| Product SKUs | SuperServer SSG-540P-E1CTR36H (Black) |
| SAS | SAS3 (12Gbps) via Broadcom 3908; RAID 0 1 5 6 10 50 60 support |
| Chipset | Intel C621A |
| Chassis Model | CSE-847BTS-R1K23LPBP4 |
| SATA | SATA3 (6Gbps) via C621A Chipset; RAID 0 1 5 10 support |
| Depth | 27.5" (699mm) |
| Height | 7" (178mm) |
| Chassis Form Factor | 4U Rackmount |
