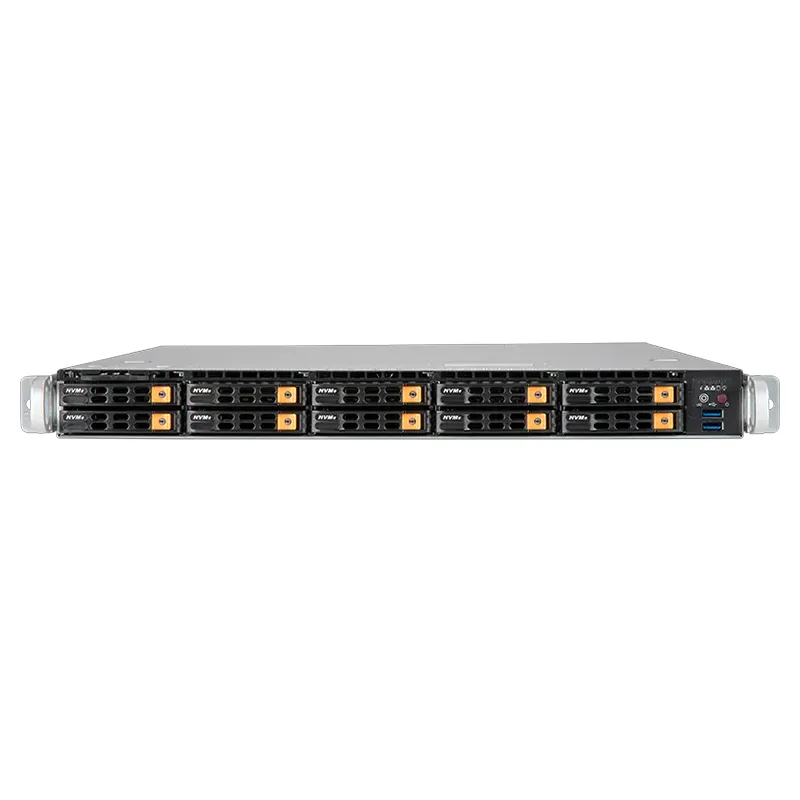

UP Storage SuperServer SSG-110P-NTR10 (Complete System Only )

$Quote1 Piece(MOQ) Minimum Order Quantity

Note：Supports up to 270W TDP CPUs (Air Cooled)
Network Connectivity：2x 10GbE BaseT with Intel X550
Memory：Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
IPMI：Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Core Count：Up to 40C/80T; Up to 60MB Cache per CPU
Get Quote
    1. Single Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors. Up to 270W TDP.
    2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel DCPMM
    3. 1 PCIe 4.0 x16 (FHHL) slot
    4. Intel Ethernet Controller X550 2x 10GbE RJ45
    5. 10x Hot-swap 2.5” All NVMe Gen 4 tool-less drive bays; Onboard 2x NVMe Gen 3/SATA M.2
    6. Redundant Platinum 860W Power Supply
Note

Supports up to 270W TDP CPUs (Air Cooled)
Network Connectivity

2x 10GbE BaseT with Intel X550
Memory

Slot Count: 8 DIMM slots Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
IPMI

Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Core Count

Up to 40C/80T; Up to 60MB Cache per CPU
CPU

Single Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors
Width

17.2" (437mm)
Weight

Net Weight: 25 lbs (11.34 kg) Gross Weight: 38 lbs (17.24 kg)
Motherboard

Super X12SPO-NTF
Package

8" (H) x 24" (W) x 32" (D)
NVMe

NVMe Gen 4 via MB onboard controller; RAID 0 1 5 10 support (with additional VROC module)
Form Factors

1U
Product SKUs

SuperServer SSG-110P-NTR10 Standard version (Black) with PWS-860P-1R2 (Platinum Level) SuperServer SSG-110P-NTR10-EU European version (Black) with PWS-861A-1R (Titanium Level)
Chipset

Intel C621A
Chassis Model

CSE-116TS-R860CBP-N10
Depth

23.5" (597mm)
Height

1.7" (43mm)
Chassis Form Factor

1U Rackmount
