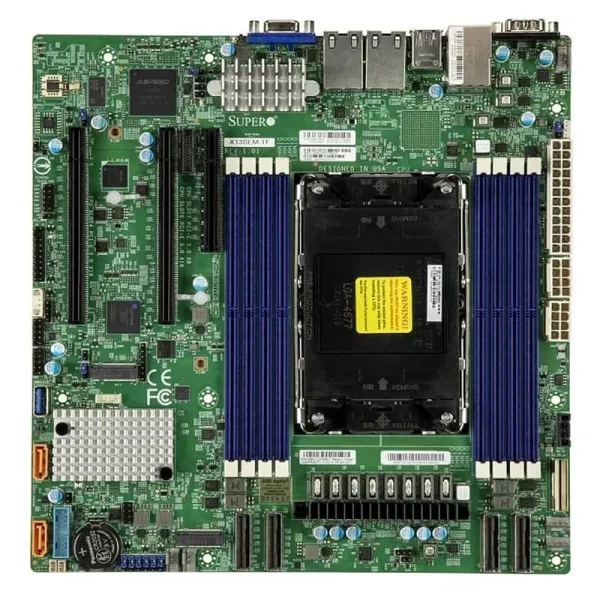

Supermicro MBD-X13SEM-F-B Server Motherboard

Key Features

1. 5th/4th Gen Intel? Xeon? Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
2. Intel C741? Chipset
3. Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots
4. 8 NVMe ports PCIe 5.0 x4 via 4 MCIO connectors
5. • 1 PCIe 5.0 x8,
   • 2 PCIe 5.0 x16,
   • 4 PCIe 5.0 x8 MCIO connectors
   • M.2 Interface:?2 PCIe 4.0 x2
   • M.2 Form Factor:?2280, 22110
   • M.2 Key:?M-Key
6. Dual LAN with 1GbE with Intel? I350
7. 5 USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
8. Intel? C741 controller for 10 SATA3 (6 Gbps) ports or 2 PCIe 3.0 x4 NVMe + 2 SATA3 ports; RAID (SATA) 0,1,5,10
