| BIOS Features | ACPI 6.4SMBIOS 3.5UEFI 2.8Plug and Play (PnP)PCI FW 3.3 |
|---|---|
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| TPM | 1 TPM Header |
| Network Controllers | Dual LAN with 1GbE with Intel I210 |
| M.2 | M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key |
| Chipset | Intel C262 |
| DIMM Sizes | 16GB, 32GB, 8GB |
| BIOS Type | AMI 32MB AMI UEFI |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| Video Output | 1 VGA D-Sub Connector port(s) |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
| PCIe | 1 PCIe 5.0 x8, 1 PCIe 5.0 x8 (in x16 slot), 2 PCIe 4.0 x4 (in x8 slot) |
| USB | 6 USB 2.0 port(s) (4 via header; 2 rear)5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) |
| Form Factor | Micro-ATX |
| Memory Type | 4400/4000/3600 MT/s Up to 128GB of memory with speeds of up to 4400MT/s (2DPC) |
| Application | Server |
| IPMI | ASPEED AST2600 BMC |
| Memory Voltage | 1.1V |
| CPU | CPU TDP supports Up to 95W TDP, Intel Xeon E-2400/Pentium* ProcessorSingle Socket Socket V0 (LGA-1700) supported |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| SATA | 8 SATA3 (6Gbps) port(s) |
| Memory Capacity | 4 DIMM slotsUp to 128GB Unbuffered ECC UDIMM, DDR5-4400MT/s |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Core | Up to 8 cores |

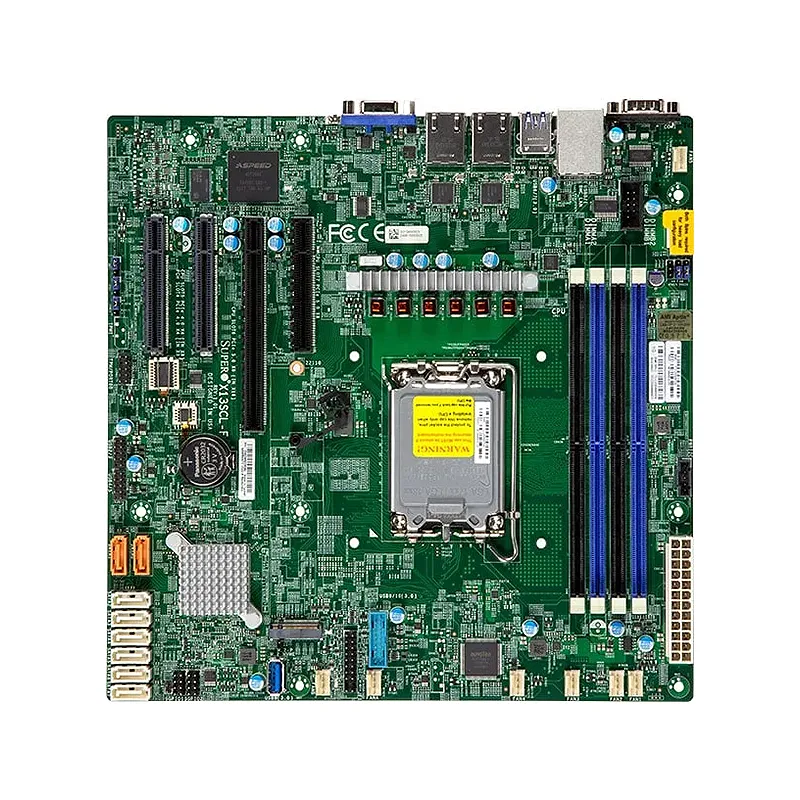

Supermicro MBD-X13SCL-F-B
$Quote1 Piece(MOQ)
| BIOS Features： | ACPI 6.4SMBIOS 3.5UEFI 2.8Plug and Play (PnP)PCI FW 3.3 |
|---|---|
| Graphics： | 1 ASPEED AST2600 BMC port(s) |
| TPM： | 1 TPM Header |
| Network Controllers： | Dual LAN with 1GbE with Intel I210 |
| M.2： | M.2 Interface: 1 PCIe 4.0 x4Form Factor: 2280/22110Key: M-Key |
Inquire Now
