| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 6.2USB Keyboard SupportSMBIOS 3.1.1 |
|---|---|
| PCI-Express | 3 PCI-E 4.0 x16 Riser Slots9 PCI-E 4.0 x8 SlimSAS2 PCI-E 4.0 x4 SlimSAS1 PCI-E 4.0 x16 AIOM LAN Networking Slot |
| Cores | Up to 64 Cores |
| Network Controllers | LAN Networking provided via AIOMDedicated IPMI via Realtek RTL8211F PHY |
| M.2 | 22110Key: M-Key, 2260, 2280, Interface: 2 PCI-E 4.0 x4Form Factor: 2242 |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | Provided via AIOM1 RJ45 Dedicated IPMI LAN port |
| NVMe | 2 NVMe via SlimSAS |
| USB | 2 USB 3.0 ports (rear) |
| Form Factor | Proprietary |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2600 BMC |
| Others | 1 COM port (header)1 TPM 1.2/2.0 header |
| VGA | 1 VGA port (rear) |
| Memory Voltage | 1.2V |
| CPU | Single AMD Ryzen Threadripper PRO 5000WX/3000WX Series ProcessorSocket SP3 |
| Memory Capacity | 8 DIMM slotsSupports up to 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs8-channel memory bus |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 9.6" x 14.5" |

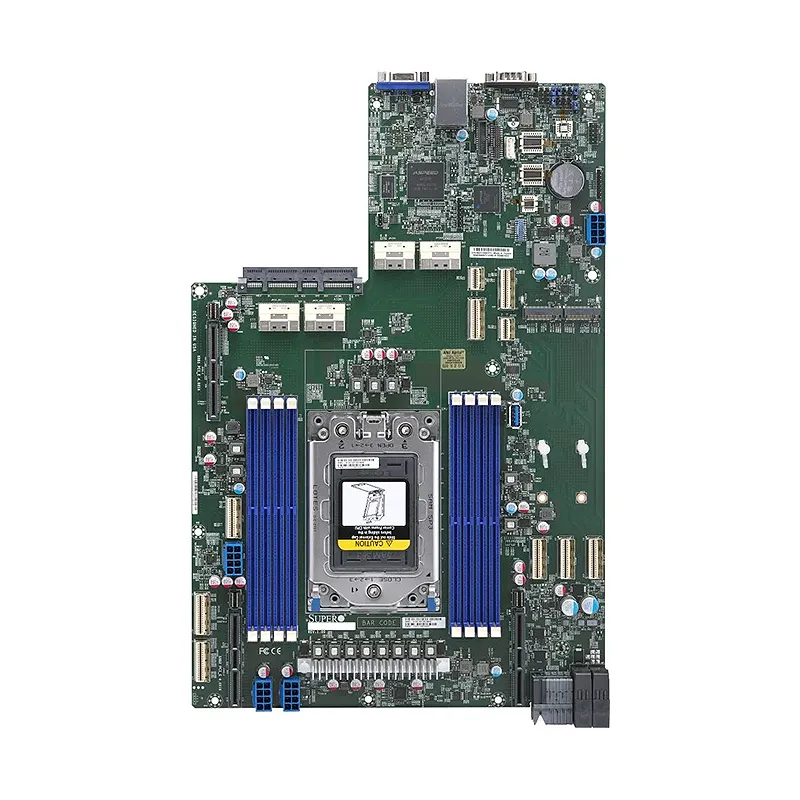

Supermicro MBD-H12SSG-ANP6
$Quote1 Piece(MOQ)
| BIOS Features： | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 6.2USB Keyboard SupportSMBIOS 3.1.1 |
|---|---|
| PCI-Express： | 3 PCI-E 4.0 x16 Riser Slots9 PCI-E 4.0 x8 SlimSAS2 PCI-E 4.0 x4 SlimSAS1 PCI-E 4.0 x16 AIOM LAN Networking Slot |
| Cores： | Up to 64 Cores |
| Network Controllers： | LAN Networking provided via AIOMDedicated IPMI via Realtek RTL8211F PHY |
| M.2： | 22110Key: M-Key, 2260, 2280, Interface: 2 PCI-E 4.0 x4Form Factor: 2242 |
