| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 6.2USB Keyboard SupportSMBIOS 3.1.1 |
|---|---|
| PCI-Express | WIO:Ultra: |
| Cores | Up to 64 Cores |
| Network Controllers | Provided via Ultra Riser Card1 Realtek RTL8211F PHY (dedicated IPMI) |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | 1 RJ45 Dedicated IPMI LAN port |
| USB | 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) |
| Form Factor | Proprietary Ultra/WIO |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2500 BMC |
| Others | 1 COM port (rear)2 SATA DOM power connector4 NVMeTPM 2.0 header |
| VGA | 1 VGA port |
| Memory Voltage | 1.2V |
| CPU | Dual AMD EPYC 7003/7002 Series ProcessorsSocket SP3 |
| SATA | 16 SATA3 (6 Gbps) ports |
| Memory Capacity | 32 DIMM slotsSupports up to 8TB Registered ECC DDR4 3200MHz SDRAM8-channel memory busFor Dual CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 17" x 17" (43.2cm x 43.2cm) |

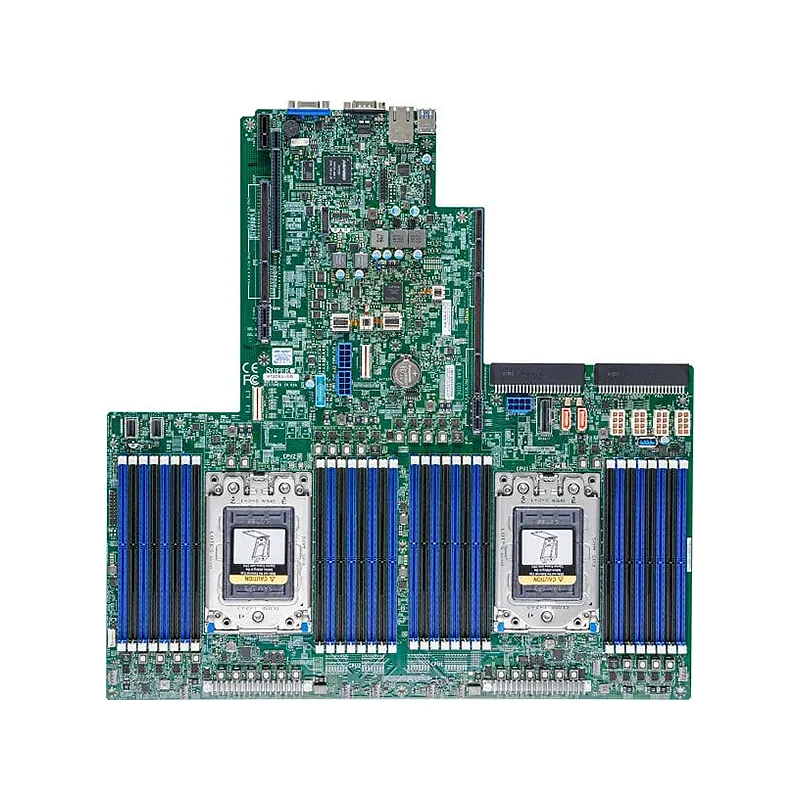

Supermicro MBD-H12DSU-iNR
$Quote1 Piece(MOQ)
| BIOS Features： | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 6.2USB Keyboard SupportSMBIOS 3.1.1 |
|---|---|
| PCI-Express： | WIO:Ultra: |
| Cores： | Up to 64 Cores |
| Network Controllers： | Provided via Ultra Riser Card1 Realtek RTL8211F PHY (dedicated IPMI) |
| DIMM Sizes： | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
