| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 6.2USB Keyboard SupportSMBIOS 3.1.1 |
|---|---|
| PCI-Express | 19 PCI-E 4.0 x8 SlimSAS1 PCI-E 4.0 x4/SATA3 x4 hybrid SlimSAS |
| Graphics | ASPEED AST2600 BMC |
| Cores | Up to 64 Cores |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | 1 RJ45 dedicated IPMI port via I/O board (AOM-PIO-i2XT) |
| USB | 2 USB 3.0 ports via I/O Board (AOM-PIO-i2XT) |
| Form Factor | Proprietary |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0IPMI 2.0 with virtual media over LAN and KVM-over-LAN supportASPEED AST2600 BMC |
| Others | 1 COM port via I/O Board (AOM-PIO-i2XT)4 internal NVMe (PCI-E 4.0 x4) ports via 2 SlimSAS (PCIE 4.0 x8)TPM 2.0 header |
| VGA | 1 VGA port via I/O board (AOM-PIO-i2XT) |
| Memory Voltage | 1.2V |
| CPU | Dual AMD EPYC 7003/7002 Series ProcessorsSocket SP3 |
| SATA | 4 SATA3 (6 Gbps) ports via SlimSAS |
| Memory Capacity | 32 DIMM slotsSupports up to 8TB Registered ECC DDR4 3200MHz SDRAM8-channel memory busFor Dual CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 17.32" x 11.8" (44cm x 30cm) |

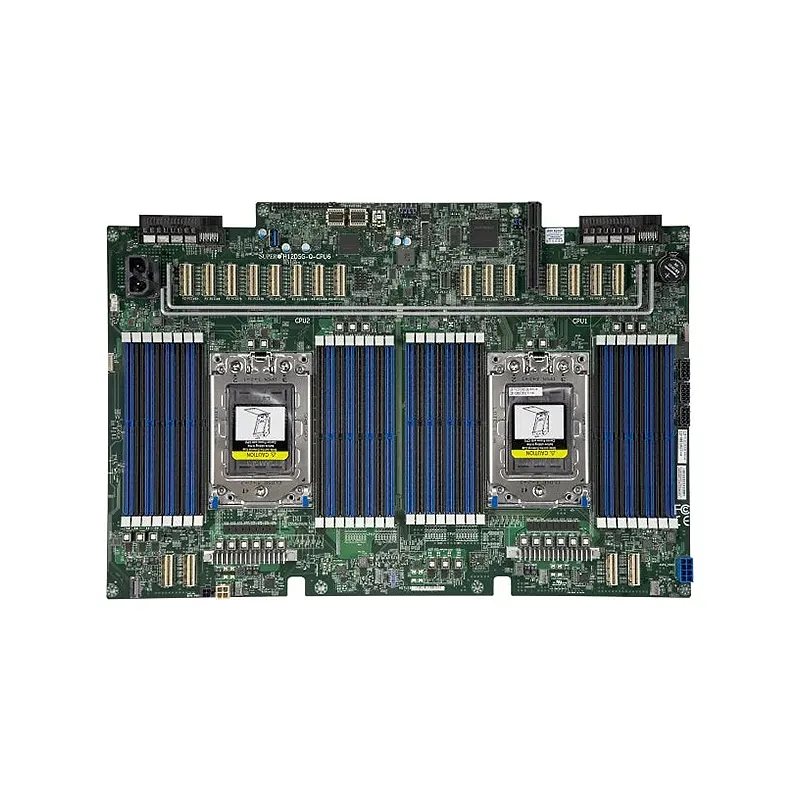

Supermicro MBD-H12DSG-Q-CPU6
$Quote1 Piece(MOQ)
| BIOS Features： | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 6.2USB Keyboard SupportSMBIOS 3.1.1 |
|---|---|
| PCI-Express： | 19 PCI-E 4.0 x8 SlimSAS1 PCI-E 4.0 x4/SATA3 x4 hybrid SlimSAS |
| Graphics： | ASPEED AST2600 BMC |
| Cores： | Up to 64 Cores |
| DIMM Sizes： | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
