| BIOS Features | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 5.1USB Keyboard SupportSMBIOS 3.1.1 |
|---|---|
| PCI-Express | 1 PCI-E 4.0 x16 Proprietary Slot to Mezzanine (EDR/HDR/25G) |
| Cores | Up to 64 Cores |
| SATA/SAS/NVMe Hybrid | 2 SATA3/NVMe with SATA3 mezzanine cardor 2 SAS3/NVMe with SAS3 mezzanine card |
| TPM | 1 TPM 2.0 header |
| Network Controllers | Dual 25GbE LAN via Mellanox CX4 |
| M.2 | Interface: 2 PCI-E 4.0 x4Form Factor: 22110Key: M-key |
| DIMM Sizes | 128GB, 16GB, 256GB, 32GB, 64GB, 8GB |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| LAN | 2x 25GbE Ethernet ports |
| Form Factor | Proprietary |
| Memory Type | 288-pin gold-plated DIMMs, DDR4 3200 MHz Registered ECC |
| Application | Server |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| VGA | ASPEED AST2500 BMC |
| Memory Voltage | 1.2V |
| CPU | Single AMD EPYC 7003/7002 Series ProcessorSocket SP3Supports CPU TDP up to 280W |
| SAS | Provided via SAS3 Mezzanine card |
| SATA | Provided via SATA3 Mezzanine card |
| Memory Capacity | 8 DIMM slotsSupports up to 2TB Registered ECC DDR4 3200MHz SDRAM8-channel memory bus |
| Error Detection | Corrects single-bit errorsDetects double-bit errors (using ECC memory) |
| Dimensions | 6.3" x 11" (16cm x 27.94cm) |

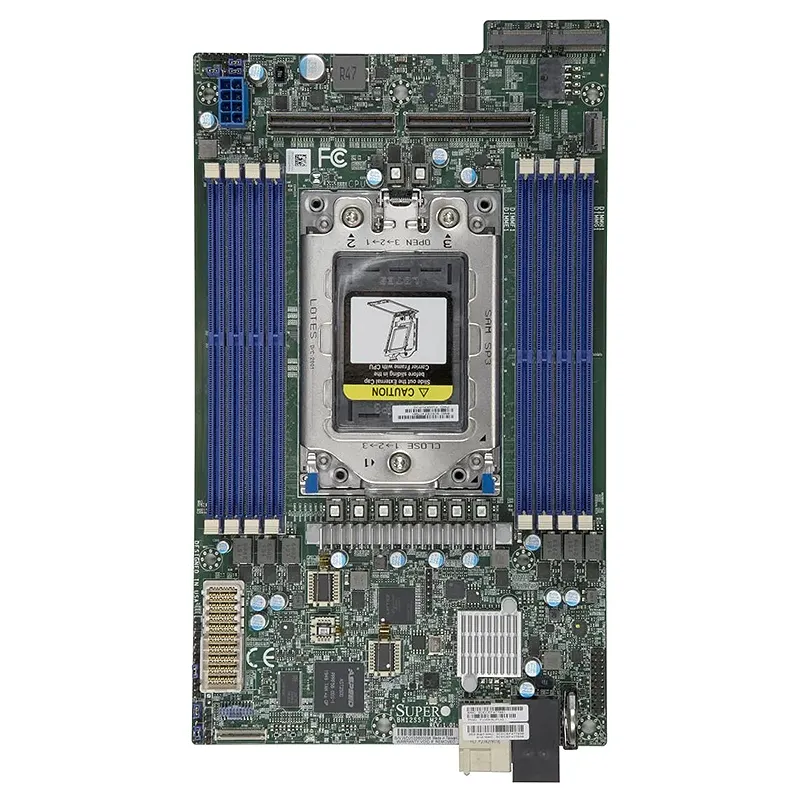

Supermicro MBD-BH12SSi-M25
$Quote1 Piece(MOQ)
| BIOS Features： | Plug and Play (PnP)DMI 2.3PCI 2.2ACPI 5.1USB Keyboard SupportSMBIOS 3.1.1 |
|---|---|
| PCI-Express： | 1 PCI-E 4.0 x16 Proprietary Slot to Mezzanine (EDR/HDR/25G) |
| Cores： | Up to 64 Cores |
| SATA/SAS/NVMe Hybrid： | 2 SATA3/NVMe with SATA3 mezzanine cardor 2 SAS3/NVMe with SAS3 mezzanine card |
| TPM： | 1 TPM 2.0 header |
