- Dual Socket E (LGA-4677) 5th/4th Generation Intel? Xeon? Scalable processors. Up to 270W TDP.
- Supports 32 DIMMs with 2DPC, up to 8TB memory capacity with 32 DIMMs of 256GB 3DS RDIMM DDR5-5600 ECC memory
- Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
- 24x hot-swap E1.S (9.5mm or 15mm) NVMe drive bays
- Redundant Titanium 2000W Power Supplies

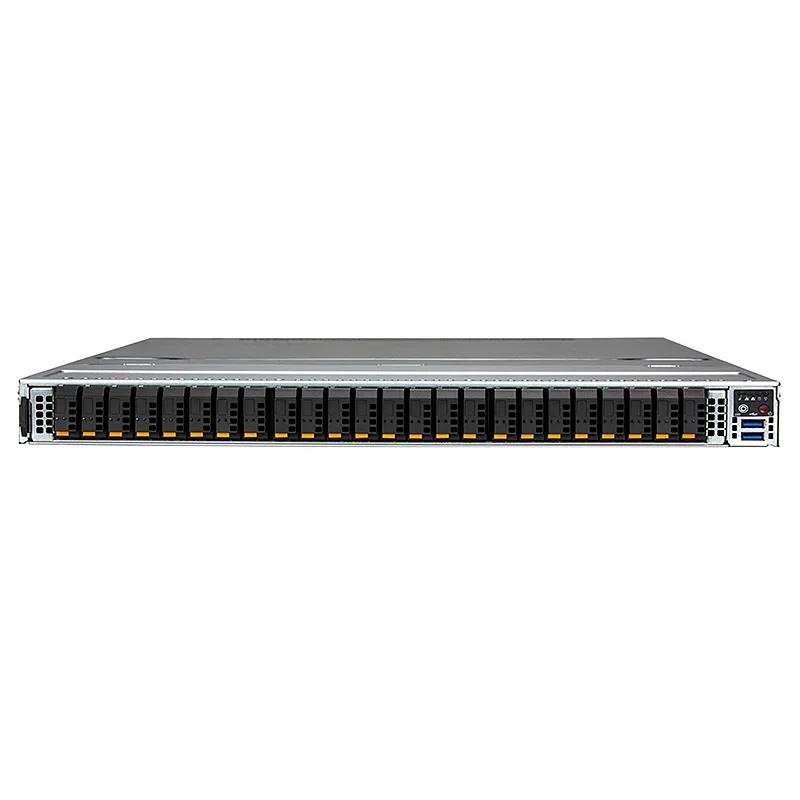

Storage SuperServer SSG-121E-NES24R (Complete System Only )
$Quote1 Piece(MOQ)
| Note： | Supports 145W - 270W TDP CPUs (Air Cooled) |
|---|---|
| Network Connectivity： | Via AIOM |
| Memory： | Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM |
| IPMI： | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| CPU-GPU Interconnect： | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| Note | Supports 145W – 270W TDP CPUs (Air Cooled) |
|---|---|
| Network Connectivity | Via AIOM |
| Memory | Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| CPU | Dual Socket E (LGA-4677) 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors |
| Width | 17.2" (438.4mm) |
| Weight | Net Weight: 48 lbs (21.8 kg) Gross Weight: 68.74 lbs (31.2 kg) |
| GPU-GPU Interconnect | PCIe |
| Motherboard | Super X13DSF-A |
| Max GPU Count | Up to 2 double-width GPU(s) |
| Package | 7.87" (H) x 23.81" (W) x 40.55" (D) |
| Form Factors | 1U |
| Product SKUs | SuperServer SSG-121E-NES24R (Silver) |
| Chipset | Intel C741 |
| Chassis Model | CSE-126ES2-R2K08P |
| Memory Voltage | 1.1 V |
| Depth | 30.4" (773.25mm) |
| Height | 1.7" (43.6mm) |
| Chassis Form Factor | 1U Rackmount |
Inquire Now
