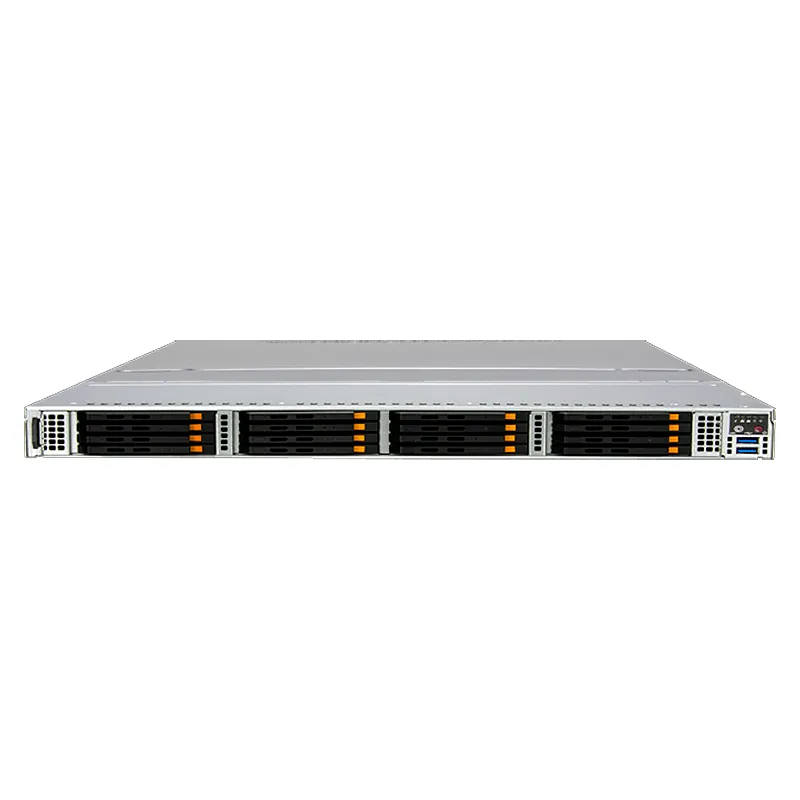

Storage A+ Server ASG-1115S-NE316R (Complete System Only )

$Quote1 Piece(MOQ) Minimum Order Quantity

Note：Supports 200W - 300W TDP CPUs (Air Cooled)
Network Connectivity：Via AIOM
Memory：Slot Count: 24 DIMM slots Max Memory (2DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
IPMI：Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Core Count：Up to 96C/192T
Get Quote
    1. Single Socket SP5 AMD EPYC? 9004 Series processors. Up to 300W TDP.
    2. Supports 24 DIMMs with 2DPC, up to 6TB memory capacity with 24 DIMMs of 256GB 3DS RDIMM/RDIMM DDR5 ECC memory
    3. Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
    4. 16x hot-swap E3.S (7.5mm) NVMe drive bays
    5. Redundant Titanium 1600W Power Supplies
Note

Supports 200W – 300W TDP CPUs (Air Cooled)
Network Connectivity

Via AIOM
Memory

Slot Count: 24 DIMM slots Max Memory (2DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
IPMI

Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Core Count

Up to 96C/192T
CPU

Single Socket SP5 AMD EPYC 9004 Series Processor featuring the 3D V-Cache Technology
Width

17.2" (438.4mm)
Weight

Net Weight: 48 lbs (21.8 kg) Gross Weight: 68.74 lbs (31.2 kg)
Motherboard

Super H13SSF
Package

7.87" (H) x 23.81" (W) x 40.55" (D)
Form Factors

1U
Product SKUs

A+ Server ASG-1115S-NE316R (Silver)
Chipset

AMD System on Chip
Chassis Model

CSE-126E32-R1K62P
Depth

30.4" (773.25mm)
Height

1.7" (43.6mm)
Chassis Form Factor

1U Rackmount
