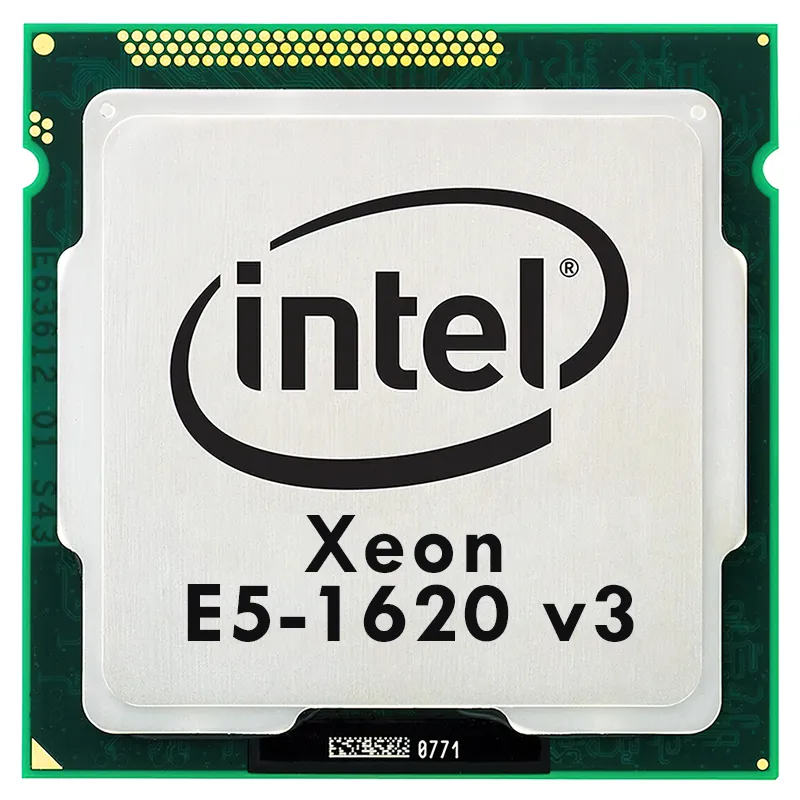

Intel Xeon E5-1620 v3 Haswell-EP 3.5 GHz 4 x 256KB L2 Cache 10MB L3 Cache LGA 2011-3 140W BX80644E51620V3 Server Processor

$Quote1 Piece(MOQ) Minimum Order Quantity

Brand:Intel
Products Status:New
Application:Server
CPU Socket Type:FCLGA2011
Total Threads:8

The Intel Xeon E5-1600 v3 processors take huge leaps forward in performance and power efficiency. Based on 22nm Haswell EP micro architecture and with LGA 2011-3 packaging, the Intel Xeon E5-1600 v3 family has core count ranging from four to eight, and supports DDR4 of up to four channels to feed these cores with adequate data. The support for Turbo Boost and Hyper-Threading technology take the computing capability to the next level.

The new Intel Xeon processor E5-1600 v3 family product helps IT address the growing demands placed on infrastructure, from supporting business growth to enabling new services faster, delivering new applications in the enterprise, technical computing, communications, storage, and cloud. It also enables powerful, agile data centers by supporting a Software-Defined Infrastructure (SDI) to address the imminent need of greater flexibility with higher levels of automation and orchestration. In addition, with the significant benefits in virtualization and security, as well as a low total cost of ownership and Intels acclaimed product quality, the Intel Xeon Processor E5-1600 v3 product family is a compelling solution for any organization.



Brand

Intel

Products Status

New

Application

Server

CPU Socket Type

FCLGA2011

Total Threads

8

Total Cores

4

Cache

10 MB

TDP

140 W

Manufacturing Tech

22 nm

Processor Base Frequency

3.50 GHz

Memory Types

DDR4 1333/1600/1866/2133

Series

Intel Xeon Processor E5 v3 Family

Part Number

E5-1620V3

Model

CM8064401973600

Hyper-Threading Support

Yes

Max Memory Size

768 GB

Code Name

Haswell

Max Turbo Frequency

3.60 GHz

64-Bit Support

Yes

Max # of Memory Channels

4

Max # of PCI Express Lanes

40

PCI Express Revision

3

Package Size

52.5mm x 45.0 mm

Embedded Options Available

No

Scalability

1S Only

ECC Memory Supported

Yes

Max CPU Configuration

1

Instruction Set

64-bit

PCI Express Configurations

x16, x4, x8

Max Memory Bandwidth

68 GB/s

Bus Speed

0 GT/s

Physical Address Extensions

46-bit
