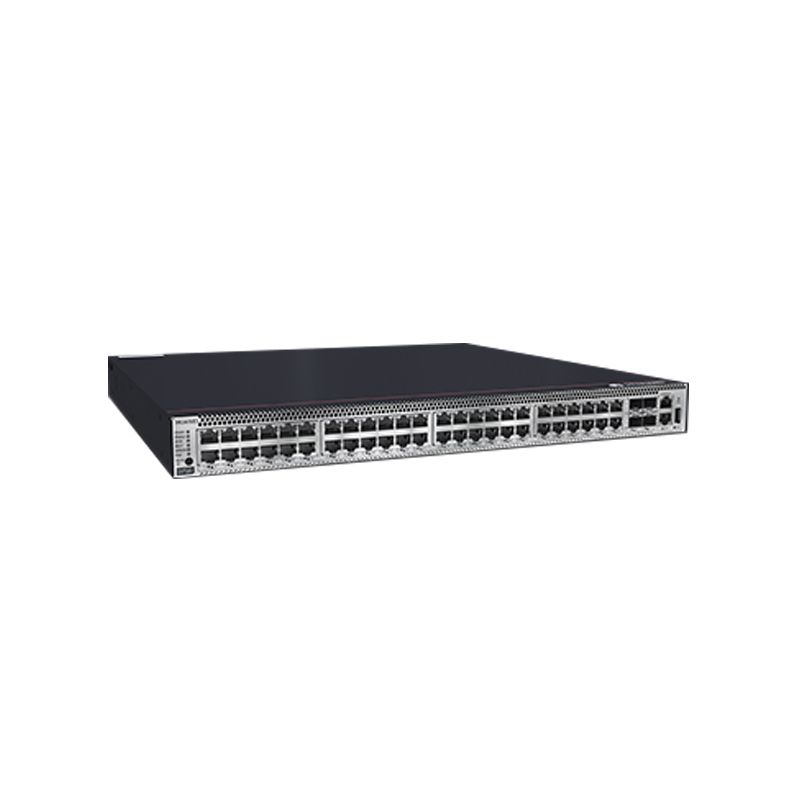

Huawei S5735-S48S4X (48 x GE SFP ports, 4 x 10 GE SFP+ ports, without power module)

Weight (with packaging)：	8.27 kg (18.23 lb)
Maximum power consumption (100% throughput, full speed of fans)：	89 W
Operating temperature：	-5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) NOTE:When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F).
Products Status：	New
Rated voltage range：	AC input: 100 V AC to 240 V AC, 50/60 Hz, DC input: -48 V DC to -60 V DC

Weight (with packaging)	8.27 kg (18.23 lb)
Maximum power consumption (100% throughput, full speed of fans)	89 W
Operating temperature	-5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) NOTE:When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1C (1.8F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0C (32F).
Products Status	New
Rated voltage range	AC input: 100 V AC to 240 V AC, 50/60 Hz, DC input: -48 V DC to -60 V DC
Fixed port	48 x GE SFP ports, 4 x 10 GE SFP+ ports
Storage temperature	-40C to +70C (-40F to +158F)
Chassis height [U]	1
Service port surge protection	NA
Power supply surge protection	Using AC power modules: 6 kV in differential mode, 6 kV in common mode, Using DC power modules: 2 kV in differential mode, 4 kV in common mode
PoE	Not supported
PN	98010947
Mean time to repair (MTTR)	2 hours
Memory (RAM)	1 GB
Availability	> 0.99999
Noise under normal temperature (27C, sound power)	< 61 dB(A)
RPS	Not supported
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Model	S5735-S48S4X
Dimensions (H x W x D)	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.), Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442.0 mm x 444.2 mm (1.72 in. x 17.4 in. x 17.49 in.)
RTC	Supported
Certification	EMC certification, Safety certification, Manufacturing certification
Mean time between failures (MTBF)	66.33 years
Wide [mm]	442.0mm
Stack ports	Any 100/1000BASE-X ports or 10GE SFP+ ports (applicable in V200R019C10 and later versions)
Warranty	1 Year
Brand	Huawei
Height [mm]	43.6 mm
Maximum voltage range	AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz, DC input: -38.4 V DC to -72 V DC
Typical power consumption (30% of traffic load, tested according to ATIS standard)	67 W
Depth [mm]	420.0mm
