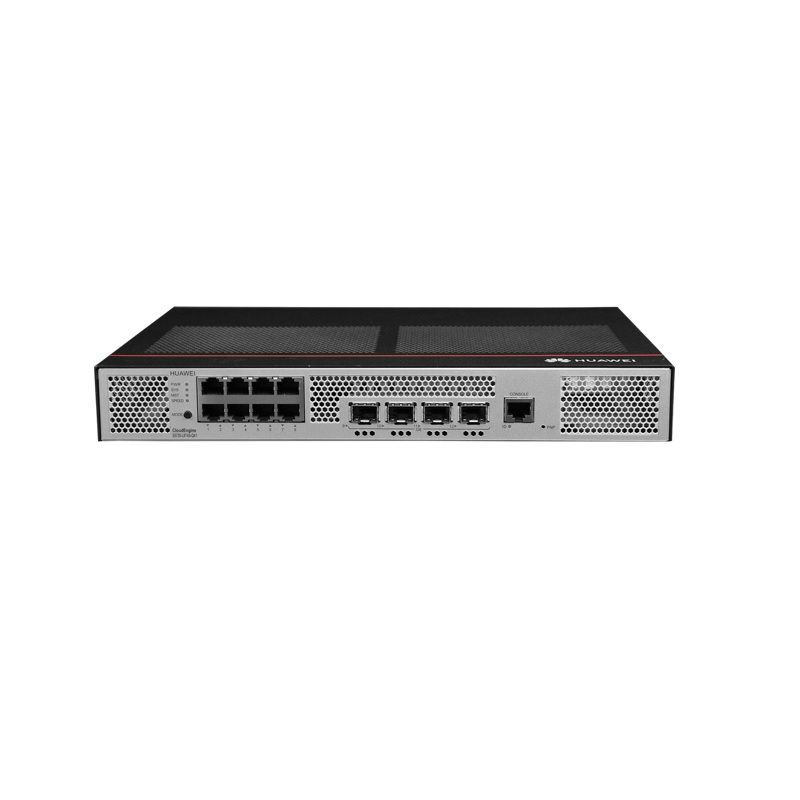

Huawei S5735-L8T4S-QA1 (8*10/100/1000BASE-T ports, 4*GE SFP ports, AC power, Fanless)

Heat dissipation mode：	Natural heat dissipation
Memory：	512 MB
Redundant power supply：	Not supported
Products Status：	New
Maximum input current [A]：	0.8 A

Heat dissipation mode	Natural heat dissipation
Memory	512 MB
Redundant power supply	Not supported
Products Status	New
Maximum input current [A]	0.8 A
USB	Not supported
Power supply mode	AC built-in
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Chassis height [U]	1
PoE	Not supported
PN	98011551
Input voltage range [V]	AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Eth Management port	Not supported
Availability	>0.99999
RPS input	Not supported
Noise at normal temperature (acoustic pressure) [dB(A)]	Noise-free (no fans), < 20
Static power consumption [W]	13.0 W
Number of card slots	0
Model	S5735-L8T4S-QA1
MTBF [year]	71.82 year
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 465.0 mm x 380.0 mm (3.54 in. x 18.31 in. x 14.96 in.)
Number of power slots	0
Weight without packaging [kg(lb)]	2.30 kg (5.07 lb)
RTC	Not supported
Rated input voltage [V]	AC input: 100 V AC to 240 V AC, 50/60 Hz
Console port	RJ45
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Certification	EMC certification, Safety certification, Manufacturing certification
Service port surge protection [kV]	Common mode: 7 kV
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
MTTR [hour]	2 hour
Airflow direction	–
Maximum heat dissipation [BTU/hour]	75.07 BTU/hour
Wide [mm]	320.0mm
Maximum power consumption [W]	22 W
Flash memory	512 MB
Warranty	1 Year
Typical heat dissipation [BTU/hour]	69.95 BTU/hour
Brand	Huawei
Power supply surge protection [kV]	6 kV in differential mode, 6 kV in common mode
Weight with packaging [kg(lb)]	3.10 kg (6.83 lb)
Height [mm]	43.6 mm
Types of fans	None
Typical power consumption [W]	20.5 W
Long-term operating temperature [C(F)]	C5C to +45C (23F to 113F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Storage temperature [C(F)]	C40C to +70C (C40F to +158F)
Noise at normal temperature (acoustic power) [dB(A)]	Noise-free (no fans), < 30
Number of fans modules	0
Depth [mm]	210.0mm
