| Maximum number of GE ports | 52 |
|---|---|
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Memory | 512 MB |
| Weight without packaging | 2.81 kg (6.2 lb) |
| Redundant power supply | Not supported |
| Maximum input current [A] | 2 A |
| Long-term operating altitude | 0-5000 m (0-16404 ft.) |
| Maximum number of FE ports | 48 |
| 10GE optical interface | 4 |
| USB | Supported |
| Long-term operating temperature | -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5906 ft.) |
| Power supply mode | AC built-in |
| Storage temperature | -40C to +70C (-40F to +158F) |
| Chassis height [U] | 1 |
| Maximum heat dissipation [BTU/h] | 177.09 |
| Service port surge protection | Common mode: 7 kV |
| Power supply surge protection | 6 kV in differential mode, 6 kV in common mode |
| PoE | Not supported |
| PN | 98011332 |
| MTTR [h] | 2 |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz |
| Eth Management port | Not supported |
| Availability | >0.99999 |
| Storage altitude | 0-5000 m (0-16404 ft.) |
| Maximum number of 25GE ports | 0 |
| RPS input | Not supported |
| Typical heat dissipation [BTU/h] | 147.4 |
| Noise at normal temperature (acoustic power) | 48 |
| Number of card slots | 0 |
| Model | S5735-L48T4X-A1 |
| Noise at normal temperature (acoustic pressure) | 36.2 |
| MTBF [year] | 53.67 |
| Weight with packaging | 3.79 kg (8.36 lb) |
| Number of power slots | 0 |
| Maximum number of 10GE ports | 4 |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz |
| Console port | RJ45 |
| 1000M electrical interface | 48 |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Maximum number of physical ports on the entire device | 52 |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| Short-term operating temperature | -5C to +55C (23F to 131F) at an altitude of 0-1800 m (0-5906 ft.) |
| Wide [mm] | 442.0 mm |
| Maximum power consumption [W] | 51.9 |
| Maximum number of 40GE ports | 0 |
| Flash memory | 512 MB |
| Warranty | 1 Year |
| Brand | Huawei |
| Height [mm] | 43.6 mm |

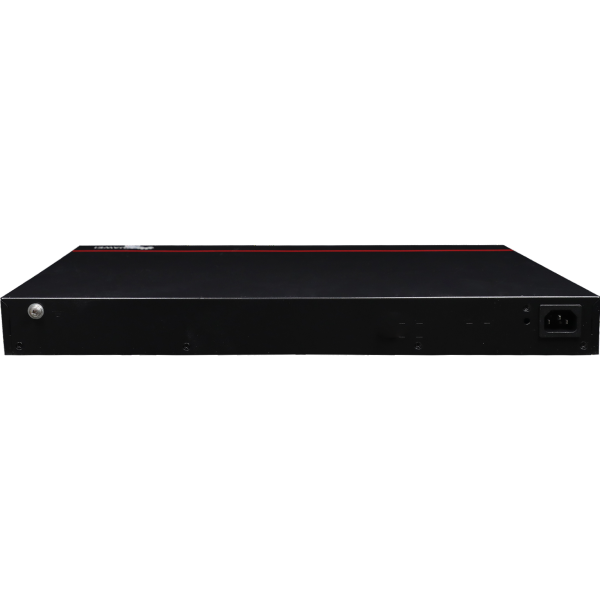

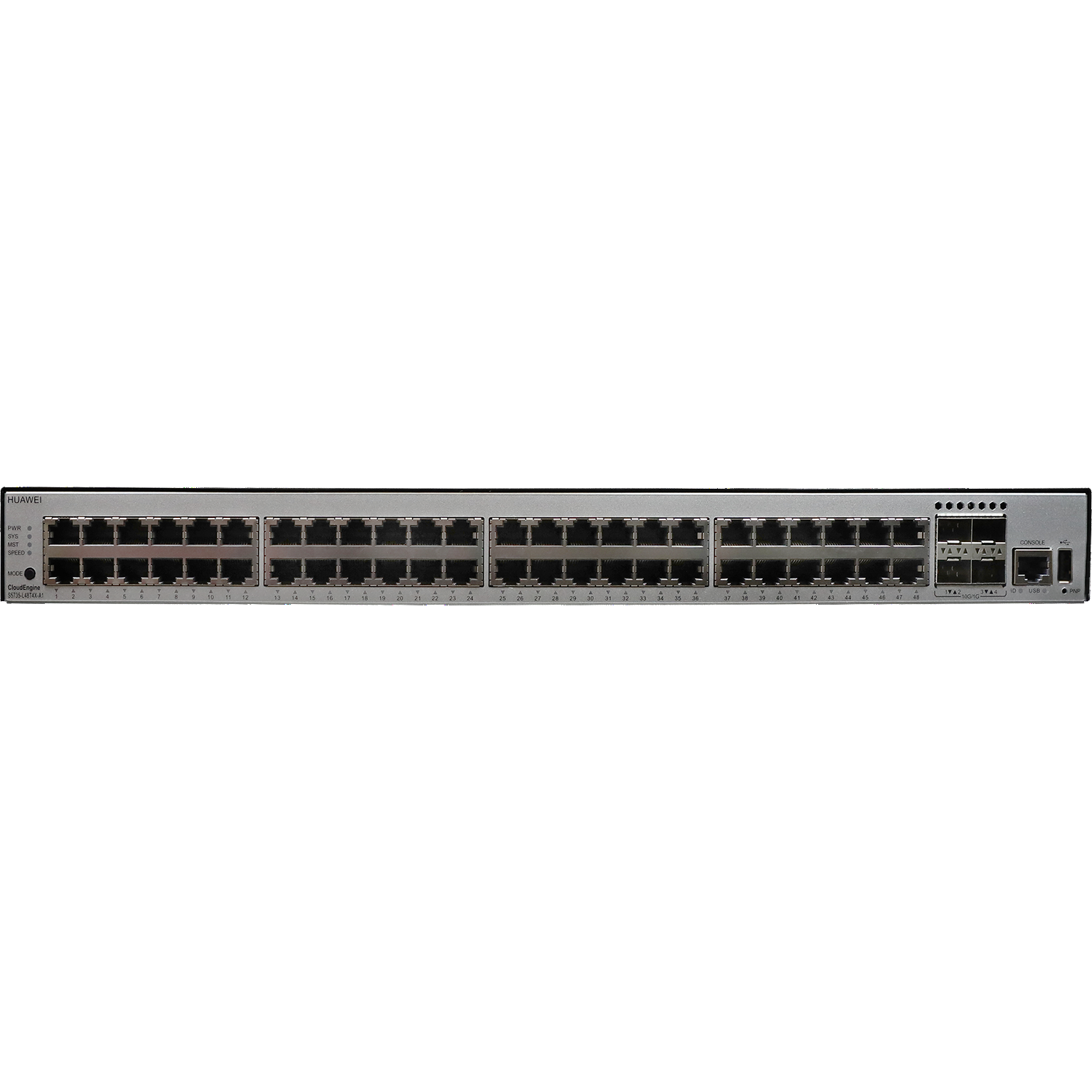

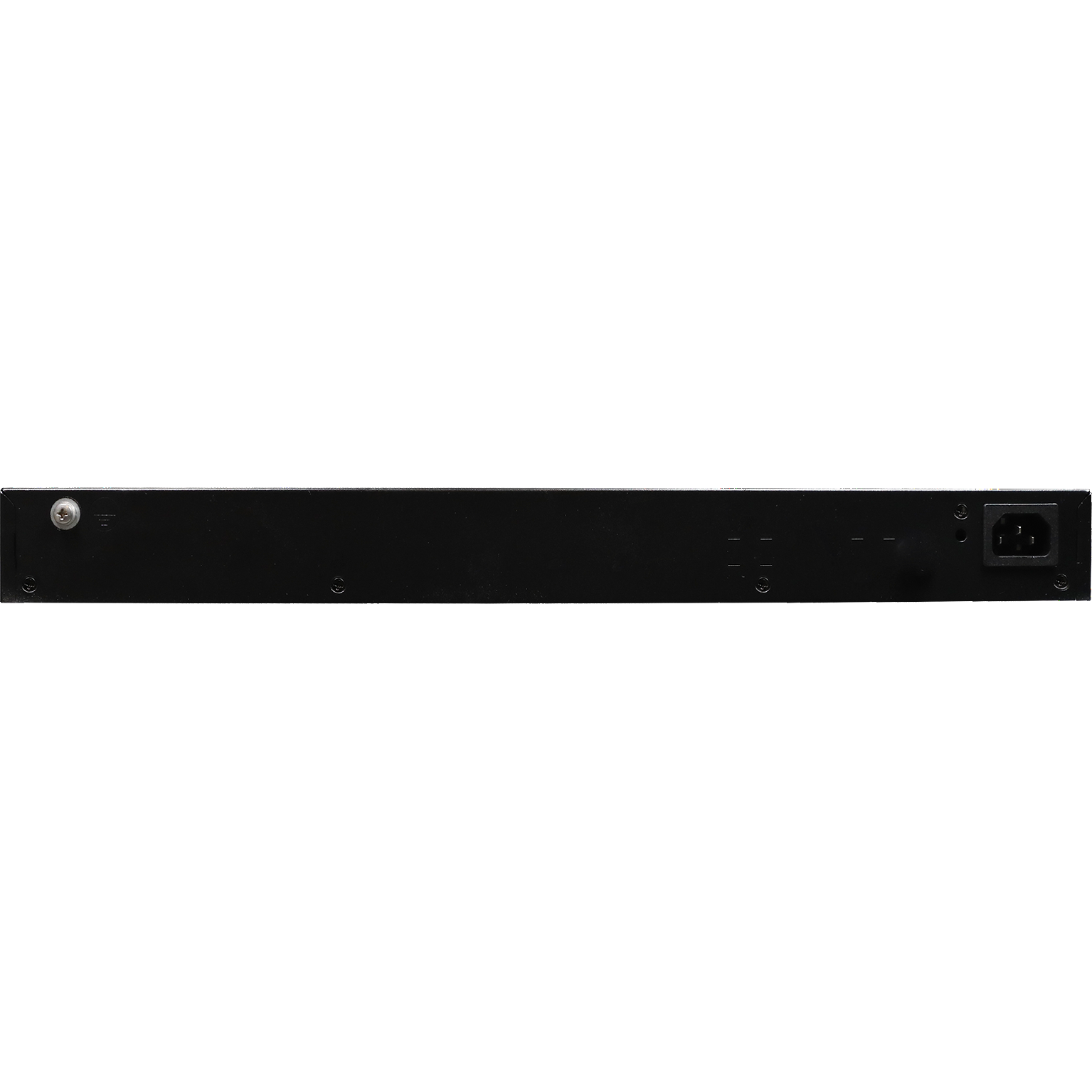

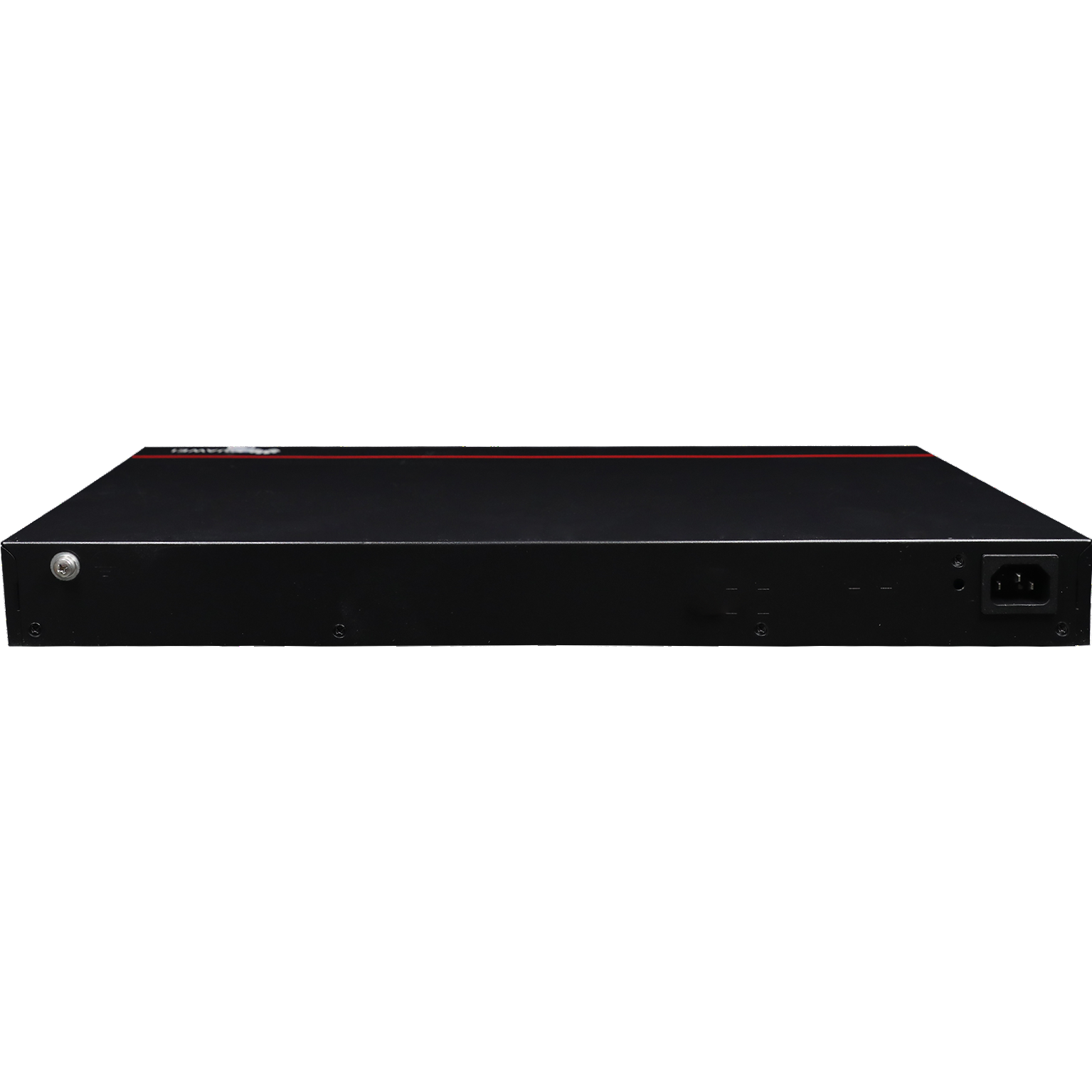

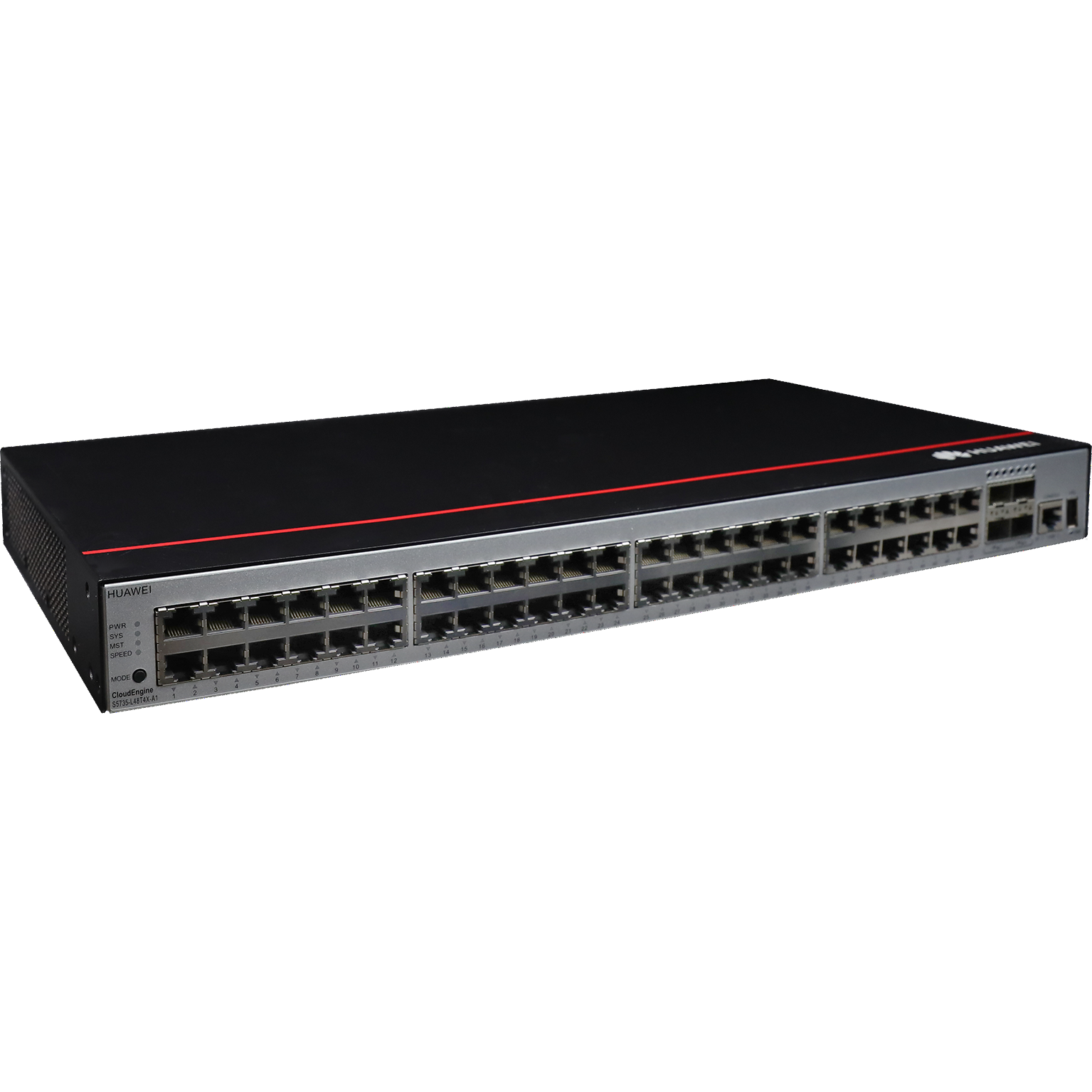

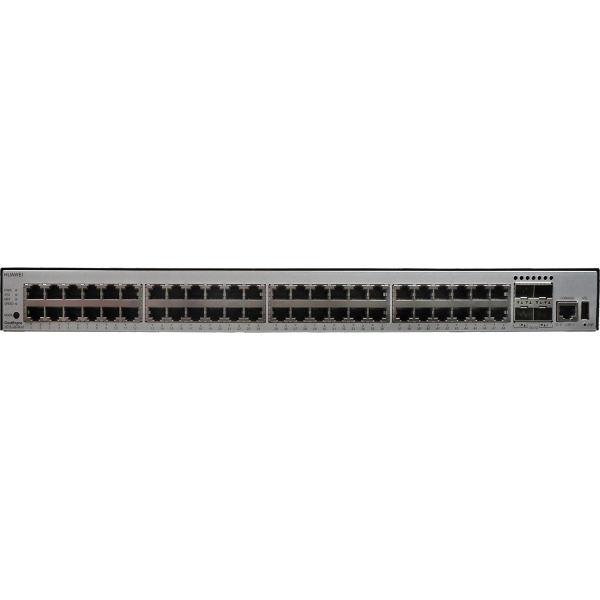

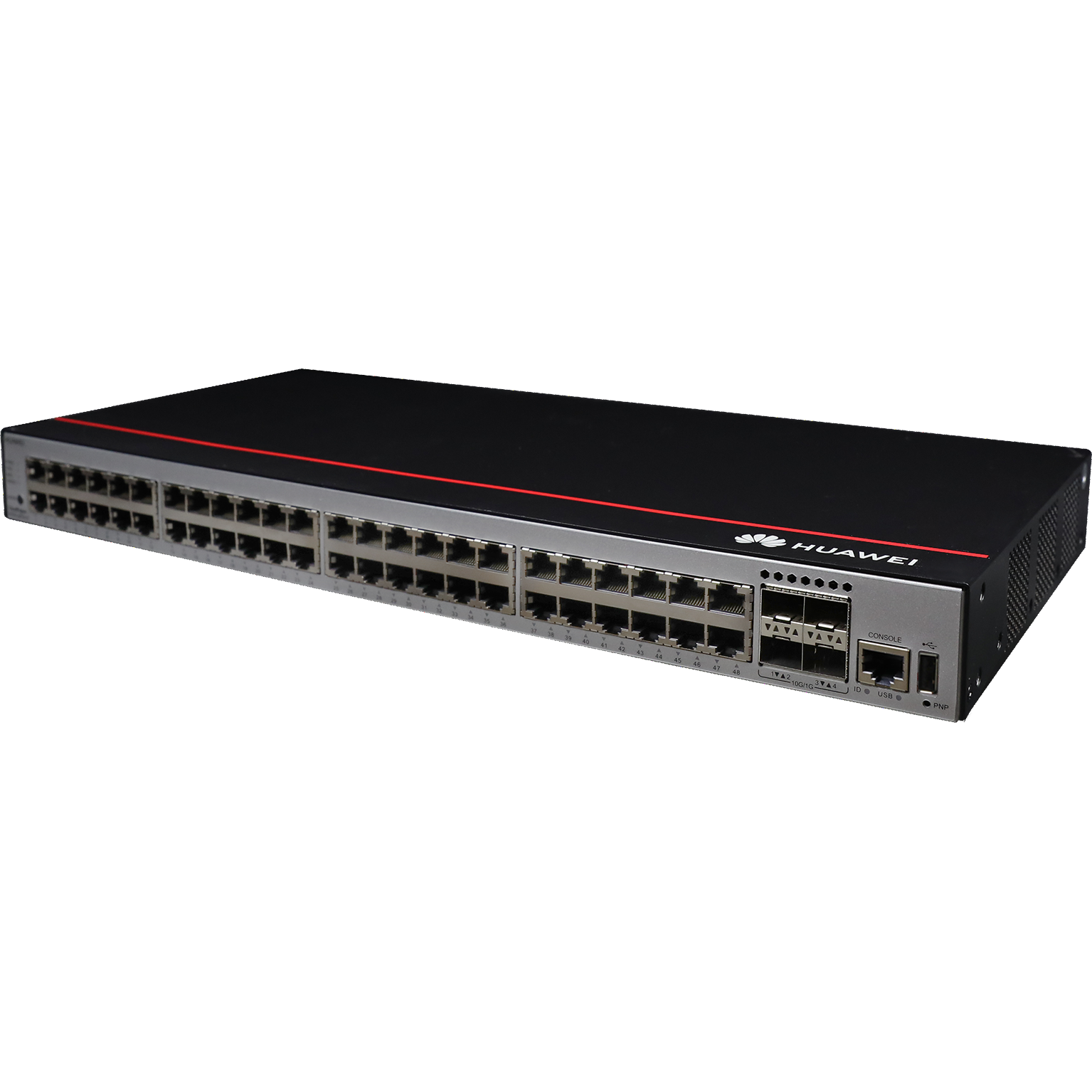

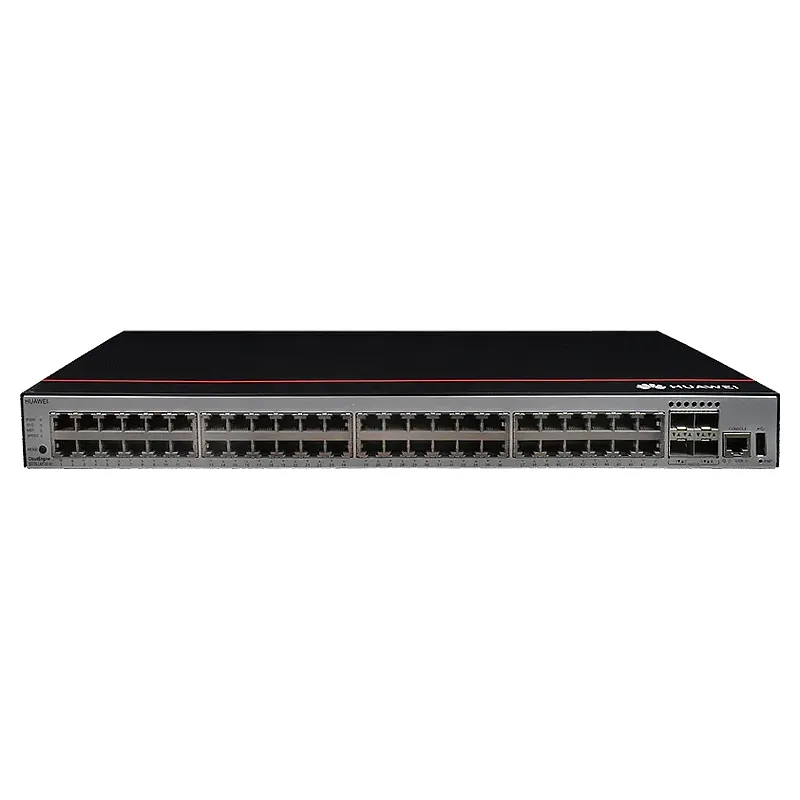

Huawei S5735-L48T4X-A1 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, AC power)
$Quote1 Piece(MOQ)
| Maximum number of GE ports： | 52 |
|---|---|
| Heat dissipation mode： | Heat dissipation with fan, intelligent fan speed adjustment |
| Memory： | 512 MB |
| Weight without packaging： | 2.81 kg (6.2 lb) |
| Redundant power supply： | Not supported |
Inquire Now
