| Maximum number of GE ports | 52 |
|---|---|
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Memory | 2 GB |
| Weight without packaging | 6.10 (13.45) |
| Redundant power supply | Not supported |
| PoE power supply | Supported |
| Maximum input current [A] | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. |
| Long-term operating altitude | 0C5000 m (0C16404 ft.) |
| Maximum number of FE ports | 48 |
| 10GE optical interface | 4 |
| USB | Supported |
| Long-term operating temperature | -5C to +50C (23F to 122F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Power supply mode | Pluggable power supply |
| Storage temperature | C40C to +70C (C40F to +158F) |
| Chassis height [U] | 1 |
| Maximum heat dissipation [BTU/h] | – Without PoE: 261.57/- Full PoE load: 3390.74 |
| Service port surge protection | Common mode: 6 kV |
| Power supply surge protection | Differential mode: 6 kV; common mode: 6 kV |
| PoE | Supported |
| PN | 98012120 |
| MTTR [h] | 2 |
| Input voltage range [V] | AC input: 90C290 V AC; 45C65 Hz |
| Eth Management port | Not supported |
| Availability | >0.99999 |
| Storage altitude | 0-5000 m (0-16404 ft.) |
| Maximum number of 25GE ports | 0 |
| RPS input | Not supported |
| Typical heat dissipation [BTU/h] | 186.91 |
| Noise at normal temperature (acoustic power) | 67 |
| Number of card slots | 0 |
| Model | S5735-L48P4XE-A-V2 |
| Noise at normal temperature (acoustic pressure) | 55 |
| MTBF [year] | 46.89 |
| Weight with packaging | 8.90 (19.62) |
| Number of power slots | 1 |
| Maximum number of 10GE ports | 4 |
| Rated input voltage [V] | AC input: 100C240 V AC; 50/60 Hz |
| Console port | RJ45 |
| 1000M electrical interface | 48 |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
| Maximum number of physical ports on the entire device | 54 |
| Airflow direction | Air intake from left, front, and right and air exhaust from rear |
| Wide [mm] | 442.0 mm |
| Maximum power consumption [W] | – Without PoE: 76.66 W/- Full PoE load: 993.74 W (PoE: 846 W) |
| Maximum number of 40GE ports | 0 |
| Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
| Warranty | 1 Year |
| Brand | Huawei |
| Height [mm] | 43.6 mm |

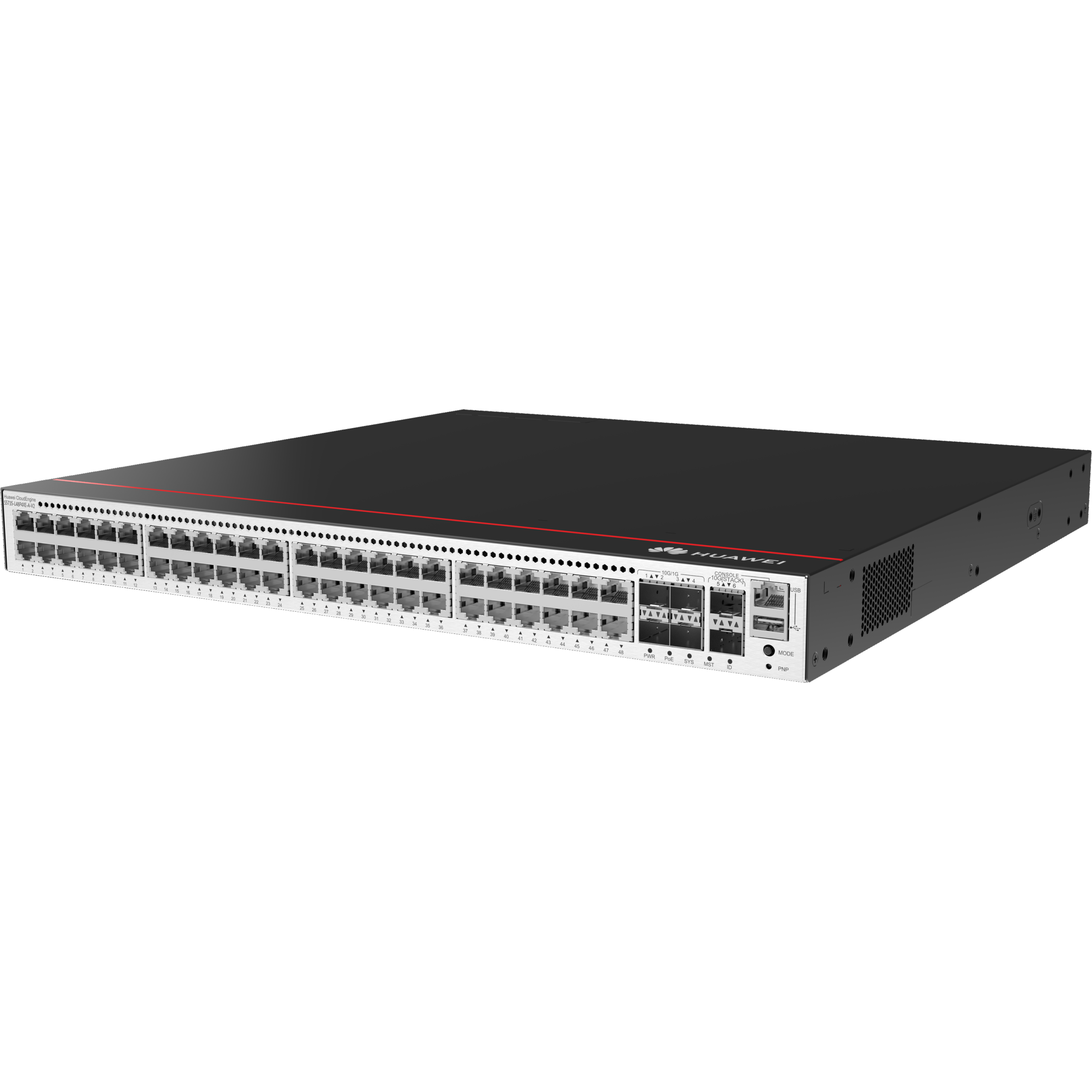

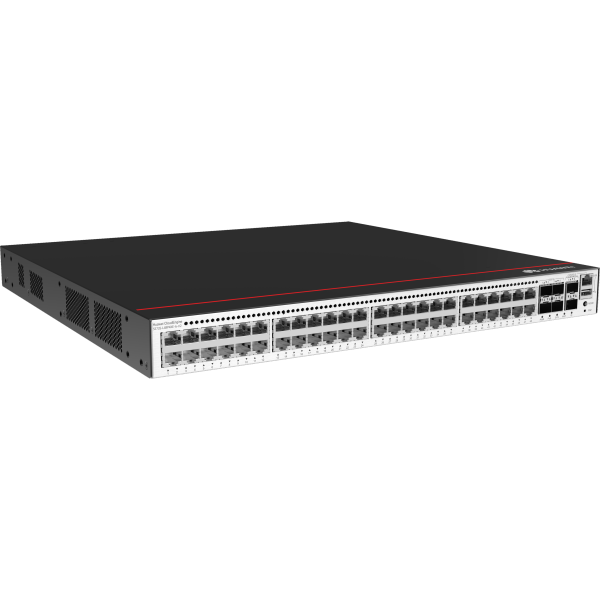

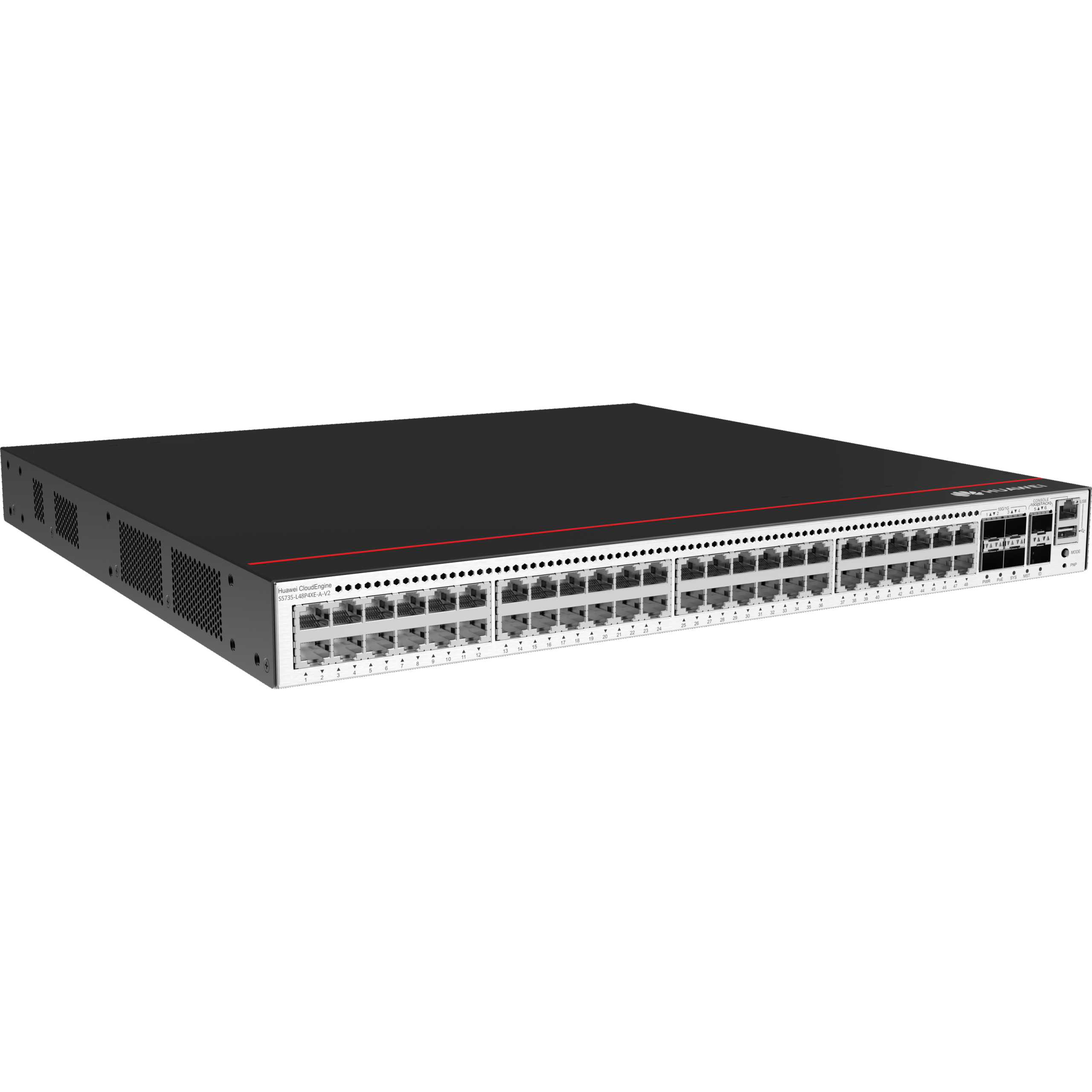

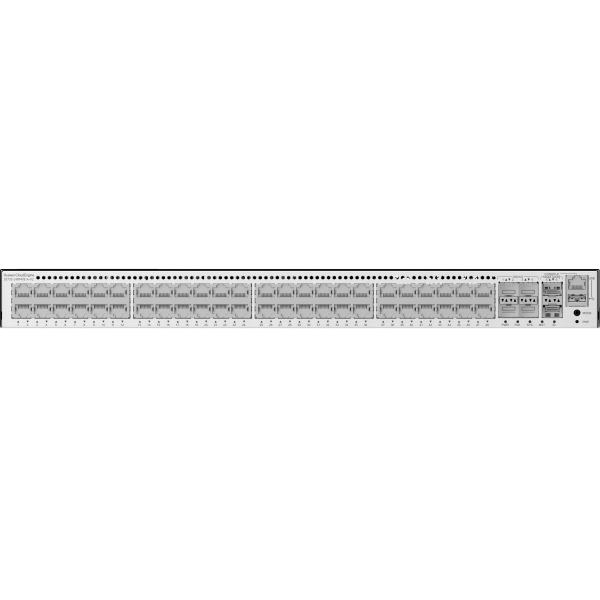

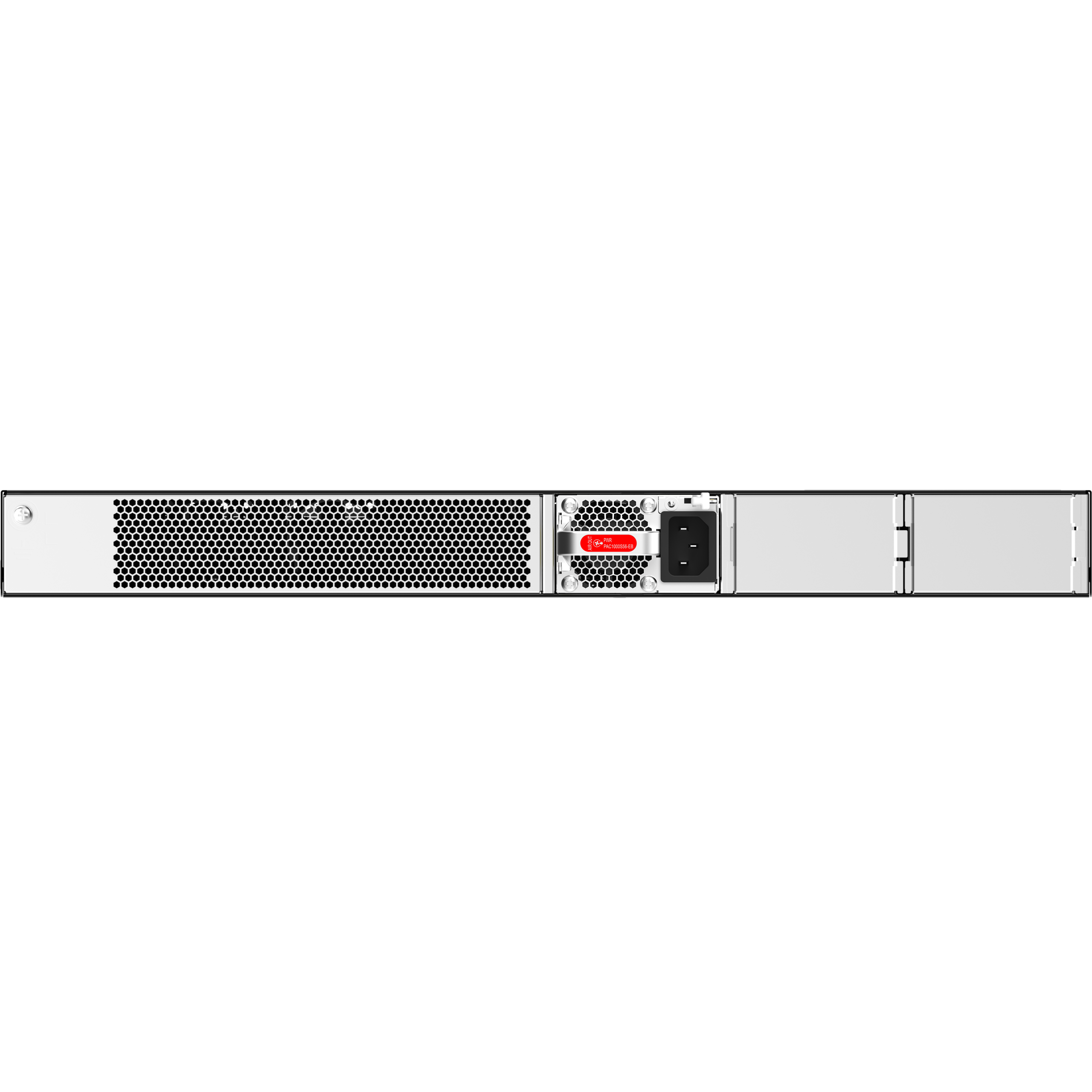

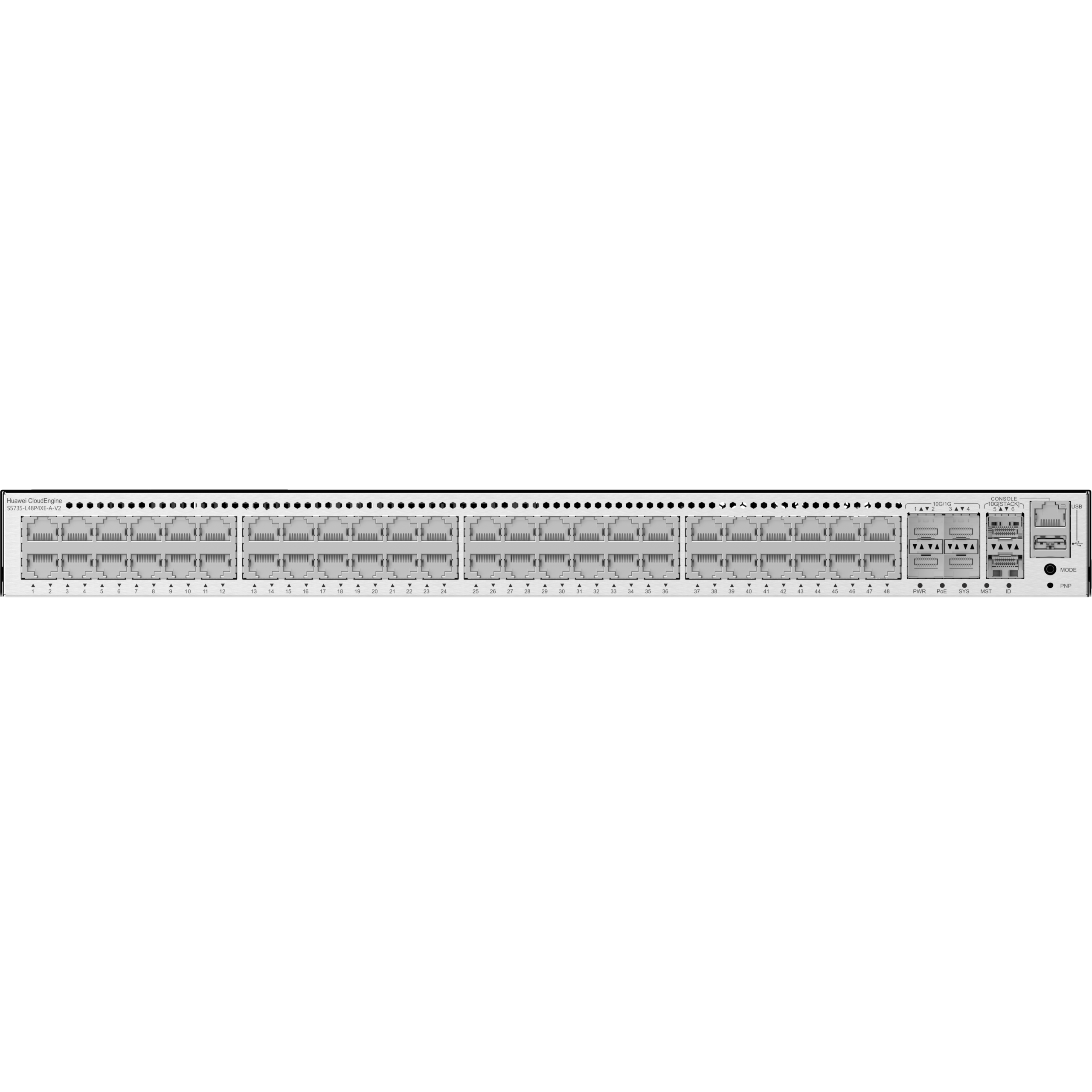

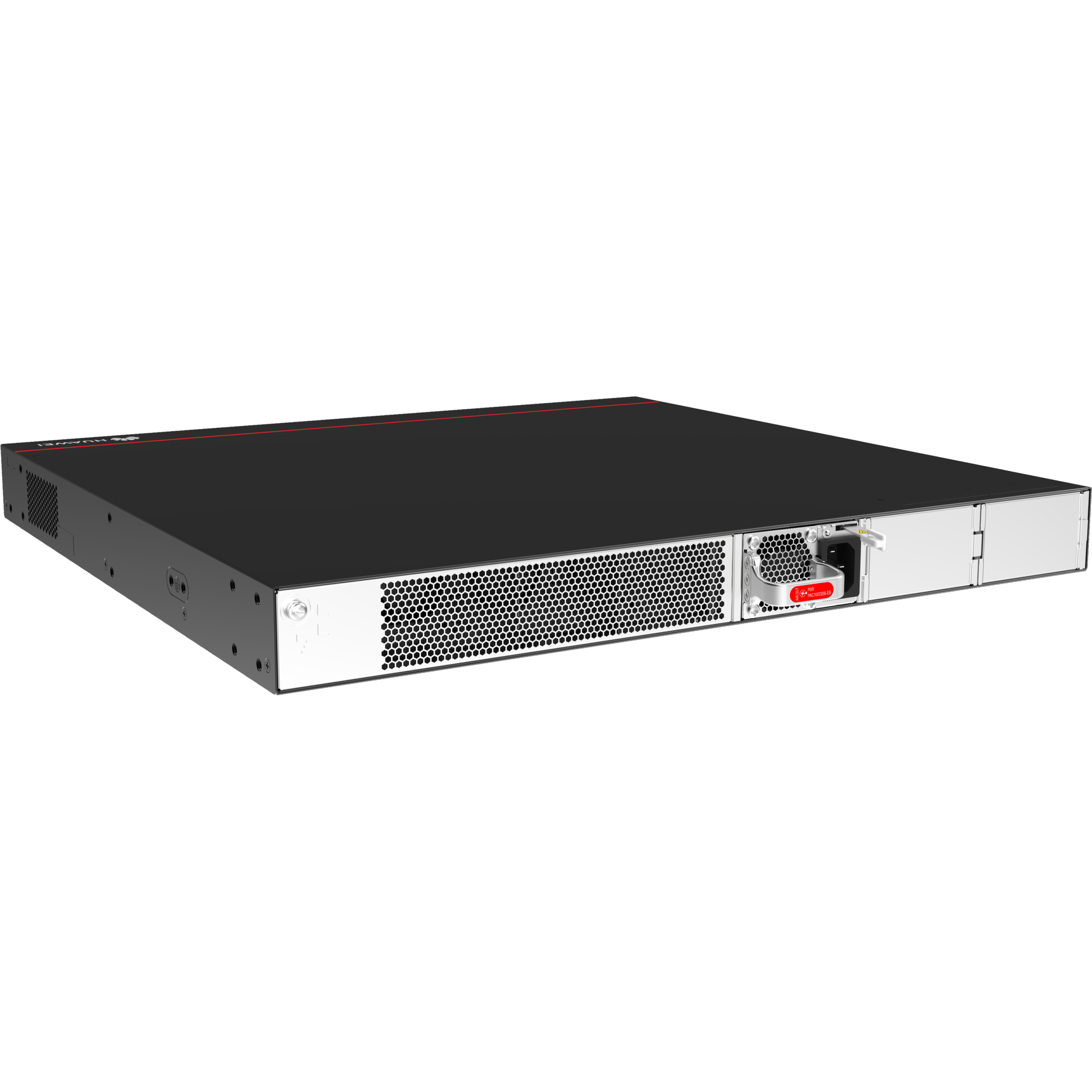

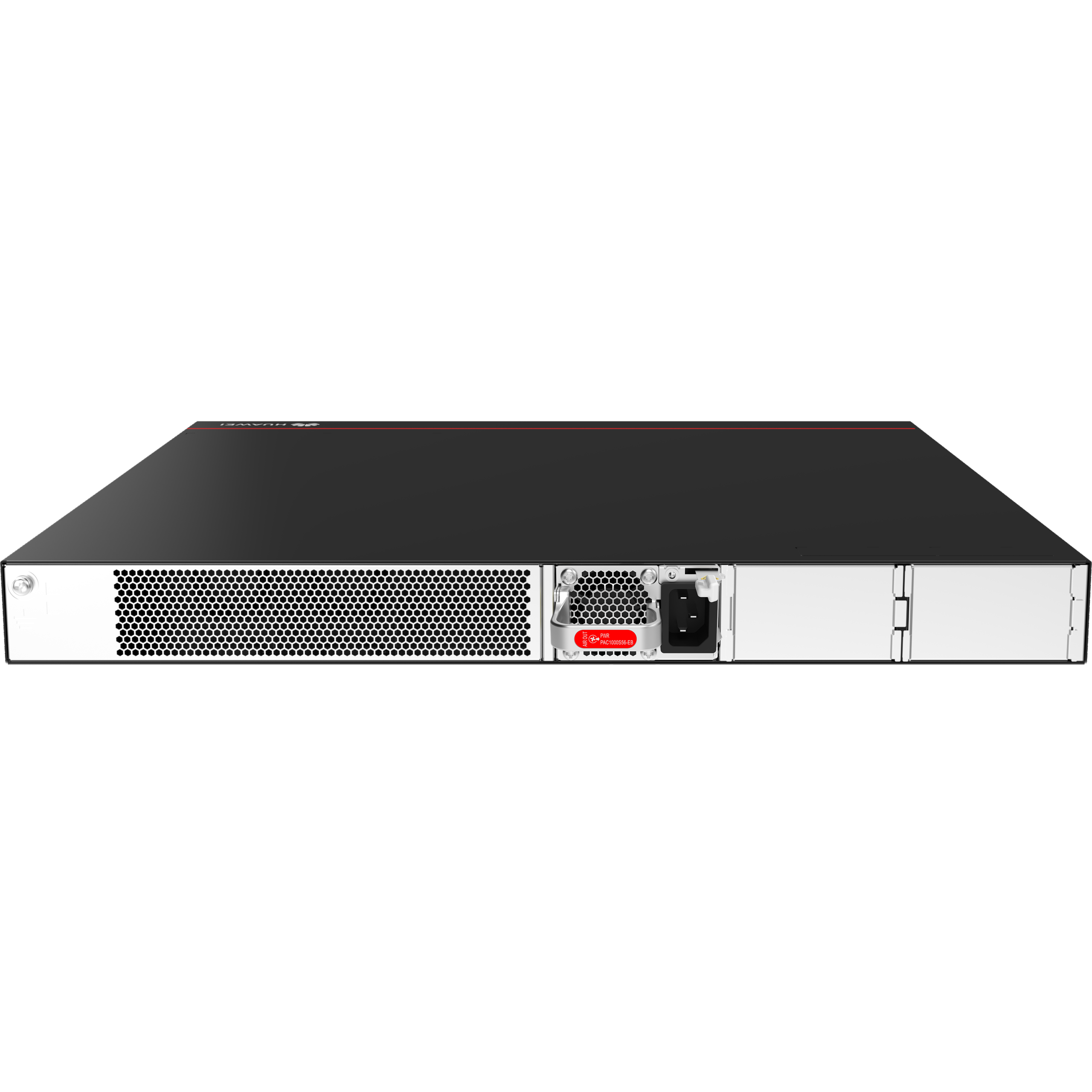

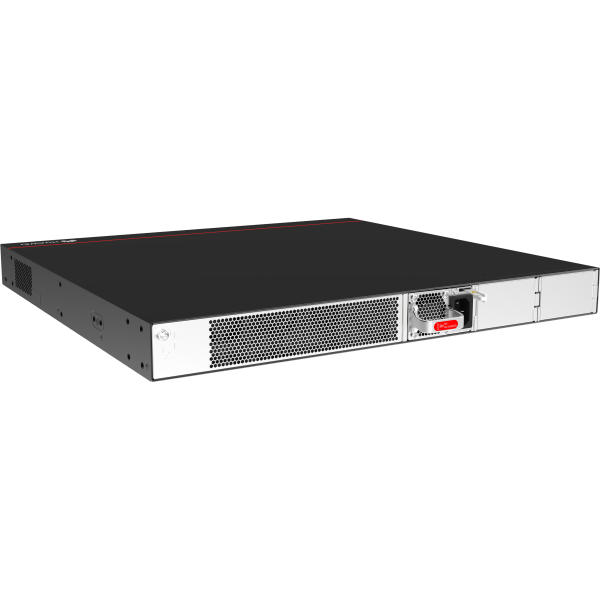

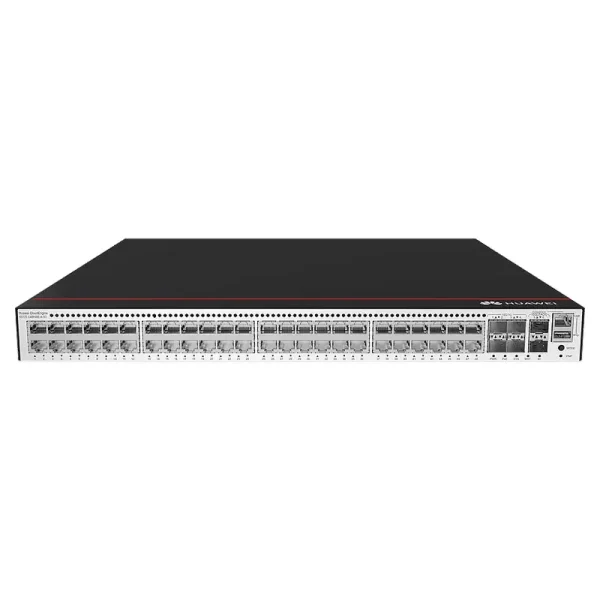

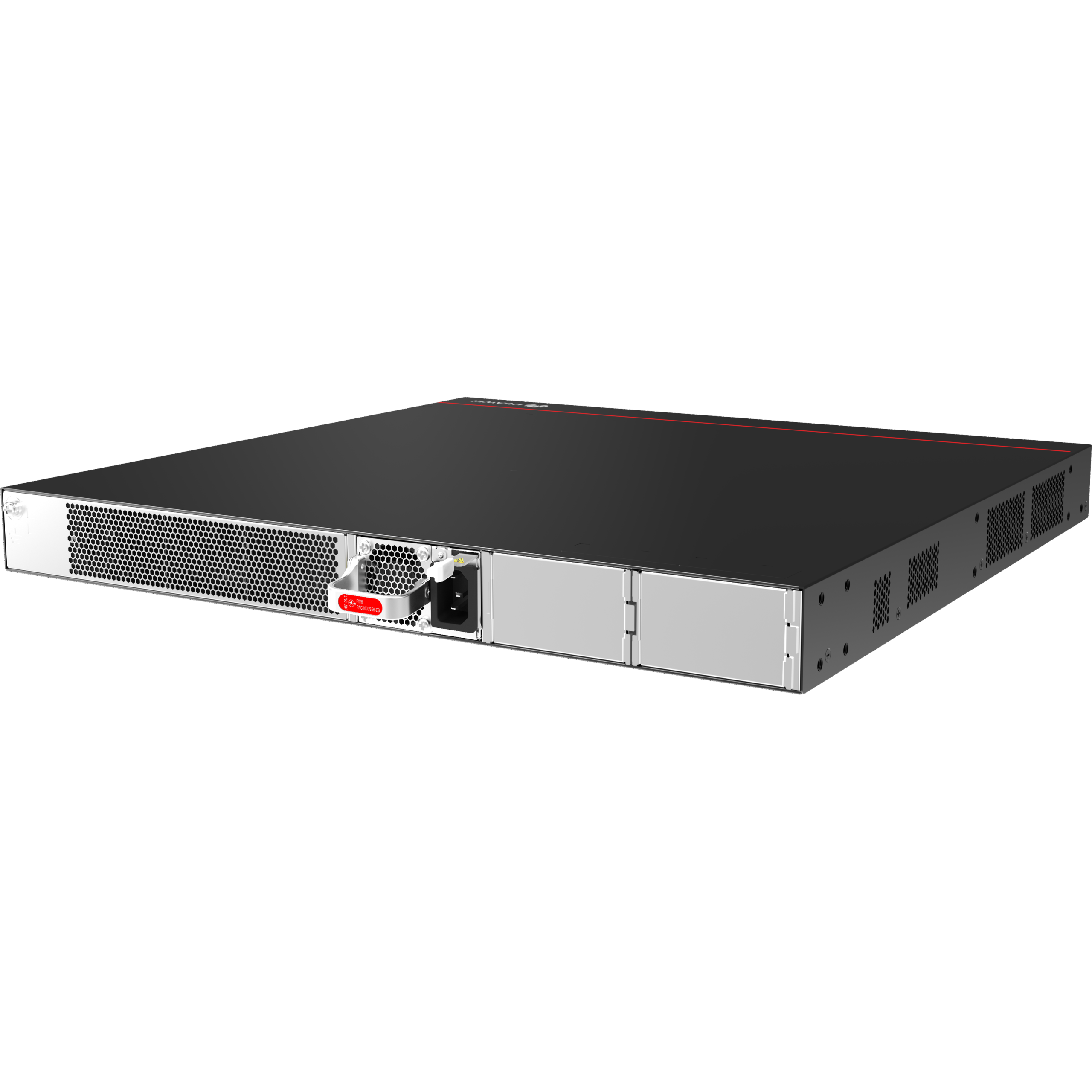

Huawei S5735-L48P4XE-A-V2 (48*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports, PoE+, 1*AC power)
$Quote1 Piece(MOQ)
| Maximum number of GE ports： | 52 |
|---|---|
| Heat dissipation mode： | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Memory： | 2 GB |
| Weight without packaging： | 6.10 (13.45) |
| Redundant power supply： | Not supported |
