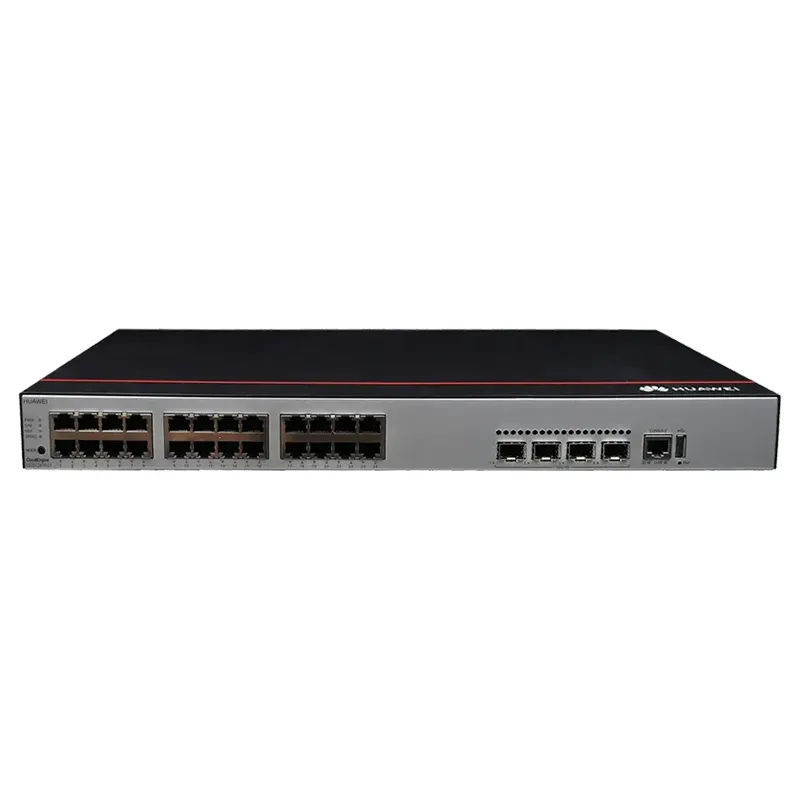

Huawei S5735-L24T4X-D1 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, DC power)

Heat dissipation mode：	Heat dissipation with fan, intelligent fan speed adjustment
Memory：	512 MB
Redundant power supply：	Not supported
Products Status：	New
Maximum input current [A]：	6A

Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Memory	512 MB
Redundant power supply	Not supported
Products Status	New
Maximum input current [A]	6A
USB	Supported
Power supply mode	DC built-in
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Chassis height [U]	1
PoE	Not supported
PN	98011304
Input voltage range [V]	DC input: -38.4 V DC to -72 V DC
Eth Management port	Not supported
Availability	>0.99999
RPS input	Not supported
Noise at normal temperature (acoustic pressure) [dB(A)]	27.2 dB(A)
Static power consumption [W]	21.9 W
Number of card slots	0
Model	S5735-L24T4X-D1
MTBF [year]	62.05 year
Dimensions with packaging (H x W x D) [mm(in.)]	90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)
Number of power slots	0
Weight without packaging [kg(lb)]	2.39 kg (5.27 lb)
RTC	Not supported
Rated input voltage [V]	DC input: -48 V DC to -60 V DC
Console port	RJ45
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Certification	EMC certification, Safety certification, Manufacturing certification
Service port surge protection [kV]	Common mode: 7 kV
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
MTTR [hour]	2 hour
Airflow direction	Air intake from left and front, air exhaustion from right
Maximum heat dissipation [BTU/hour]	127.27 BTU/hour
Wide [mm]	442.0mm
Maximum power consumption [W]	37.3 W
Flash memory	512 MB
Warranty	1 Year
Typical heat dissipation [BTU/hour]	116.01 BTU/hour
Brand	Huawei
Power supply surge protection [kV]	2 kV in differential mode, 4 kV in common mode
Weight with packaging [kg(lb)]	3.28 kg (7.23 lb)
Height [mm]	43.6 mm
Types of fans	Built-in
Typical power consumption [W]	34 W
Long-term operating temperature [C(F)]	-5C to +50C (23F to 122F) (0 m to 1800 m altitude, non-industrial optical modules), -5C to +55C (23F to 131F) (0 m to 1800 m altitude, industrial optical modules with transmission distances less than or equal to 10 km)
Storage temperature [C(F)]	-40C to +70C (-40F to +158F)
Noise at normal temperature (acoustic power) [dB(A)]	39 dB(A)
Number of fans modules	1
Depth [mm]	220.0mm
