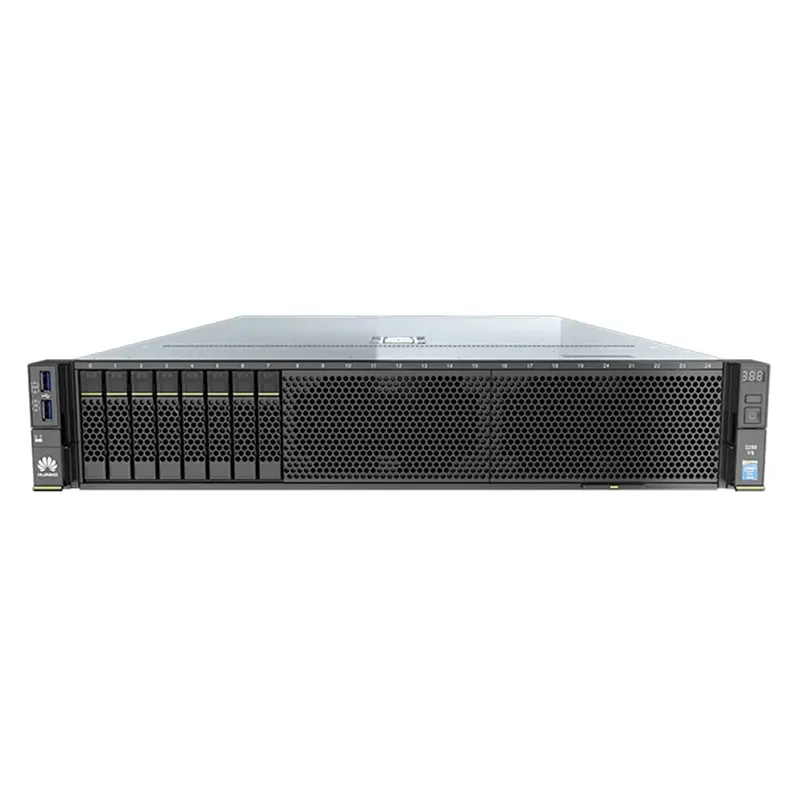

Huawei 2288H V5 (8*2.5inch HDD Chassis, With 2*GE and 2*10GE Electrical Ports) H22H-05

Brand	xfusion
Form Factor	2U
Products Status	New
Memory	24 DDR4 DIMM slots, up to 2,666 MT/s
Model	FusionServer 2288H V5
Dimensions (H x W x D)	Chassis with 3.5-inch hard drives: 86.1 mm x 436 mm x 748 mm (3.39 in. x 17.17 in. x 29.45 in.), Chassis with 2.5-inch hard drives: 86.1 mm x 436 mm x 708 mm (3.39 in. x 17.17 in. x 27.87 in.)
PCIe Expansion	Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC.
Operating Temperature	5oC to 45oC (41oF to 113oF), and ASHRAE A3 and A4 compliant
Other Features	2-socket rack server
Processors	1 or 2 full-series Intel Xeon Scalable Processors of up to 205W
Fan Modules	4 hot-swappable counter-rotating fan modules with optional N+1 redundancy
Certifications	CE, UL, FCC, CCC, and RoHS
Internal Storage	Supports the following hard drive configuration options: 8 x 2.5-inch SAS/SATA HDDs or SSDs, 12/16/20 x 3.5-inch SAS/SATA HDDs, 4, 8, 12, 24, or 28 NVMe SSDs, 31 x 2.5-inch SAS/SATA HDDs or SSDs Flash storage: 2 M.2 SSDs
RAID Support	RAID 0, 1, 10, 1E, 5, 50, 6, or 60, Configured with a supercapacitor for power-off protection for the cache (optional), RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration
Network Ports	FlexibleLOM: 2 GE or 4 GE, 2 x 10 GE, or 1 or 2 x 56 Gbit/s Fourteen Data Rate (FDR) InfiniBand (IB) interfaces
