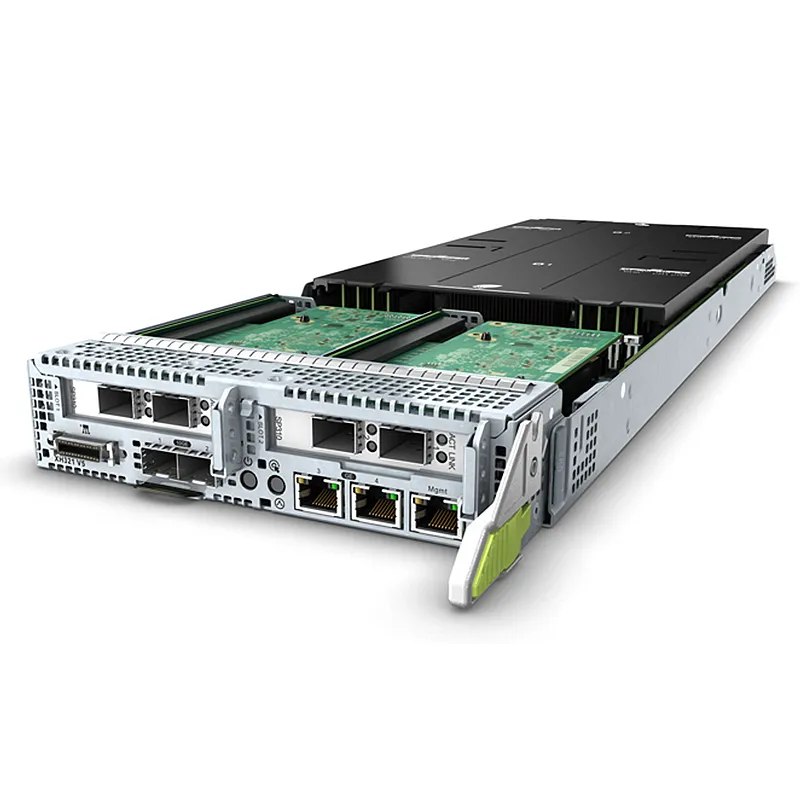

FusionServer XH321L V5 is a 1U, half-width, 2-socket liquid-cooled server node. It supports liquid cooling for CPU and memory modules and 50??C warm water cooling. The heat dissipation ratio reaches 80 percent and the PUE is equal to or less than 1.1.
FusionServer XH321L V5 Liquid-Cooled Node
$Quote1 Piece(MOQ)
| Brand： | xfusion |
|---|---|
| Form Factor： | 2U |
| Products Status： | New |
| Memory： | Supports 16 2933 MT/s DDR4 DIMMs, up to 1 TB memory capacity (configured with 64 GB DIMMs) |
| Model： | XH321L V5 |
| Brand | xfusion |
|---|---|
| Form Factor | 2U |
| Products Status | New |
| Memory | Supports 16 2933 MT/s DDR4 DIMMs, up to 1 TB memory capacity (configured with 64 GB DIMMs) |
| Model | XH321L V5 |
| Processor | 1 or 2 1st Generation Intel Xeon Scalable processors (6100/8100 series), up to 205 W, 1 or 2 2nd Generation Intel Xeon Scalable processors (6200/8200 series), up to 205 W |
| Dimensions (H x W x D) | 40.5 mm x 177.9 mm x 545.5 mm (1.59 in. x 7.00 in. x 21.48 in.) (not including liquid cooling inlet and outlet pipes) |
| Management | BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management One aggregated management network port is provided at the front of the chassis to aggregate four compute nodes into one management port (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management |
| PCIe Expansion | 1 PCIe 3.0 x16 half-height, half-length standard expansion slots |
| Operating Temperature | 5C to 35C (41F to 95F) |
| RAID | RAID 0, 1, 5, 6, 10, 50, or 60; supercapacitor for power failure protection, M.2 SSDs can be used to build RAID 0 or 1 |
| Internal Storage | Up to 6 x 2.5-inch SAS/SATA/SSD/NVMe drives or 3 x 3.5-inch SAS/SATA/SSD drives, Up to 2 x M.2 2280 or 2242 SATA SSDs |
| Certification | CE, UL, FCC, CCC, VCCI, and RoHS |
