FusionServer XH321 V6 is a new-generation 1 U half-width two-socket server node. It is innovatively designed to overcome power constraints and improve system storage density. It features powerful computing capabilities, ultra-high storage density, and easy management and maintenance.

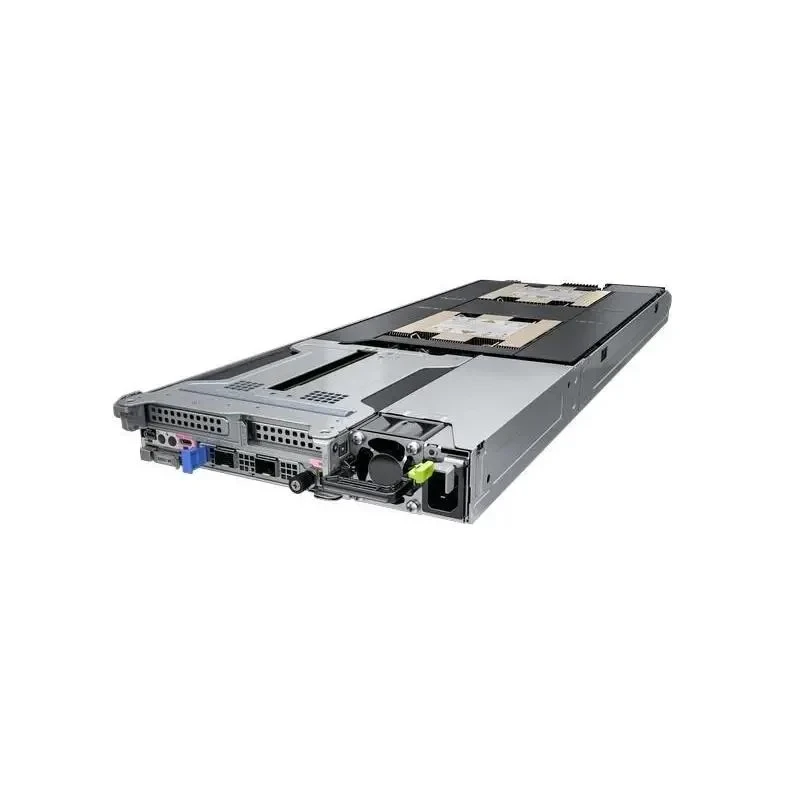

FusionServer XH321 V6 Server Node
$Quote1 Piece(MOQ)
| Brand： | xfusion |
|---|---|
| Form Factor： | 2U |
| Products Status： | New |
| Model： | FusionServer XH321 V6 |
| Processor： | 1/2 third-generation Intel Xeon Scalable processor (6300/8300 series) with 270 W TDP per processor |
| Brand | xfusion |
|---|---|
| Form Factor | 2U |
| Products Status | New |
| Model | FusionServer XH321 V6 |
| Processor | 1/2 third-generation Intel Xeon Scalable processor (6300/8300 series) with 270 W TDP per processor |
| Dimensions (H x W x D) | 40.7 mm x 218.7 mm x 632 mm (1.60 in. x 8.61 in. x 24.88 in.) |
| Management | The BMC chip integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening The BMC supports standard interfaces such as Redfish, SNMP, and IPMI2.0. Provides a remote management interface based on HTML5/VNC KVM. CD-free deployment and agentless features simplify management. Aggregates four compute nodes to any node management interface, simplifying management. FusionDirector management software is optional. It provides advanced management features, such as stateless computing, batch OS deployment, and automatic firmware upgrade, implementing intelligent and automatic management throughout the lifecycle. |
| Operating Temperature | 5C to 45C (41F to 113F) |
| RAID | RAID 0, 1, 5, 6, 10, 50, 60, and supercapacitor power failure protection RAID 0 and 1 for M.2 SSDs |
| Local Storage | A maximum of six 2.5-inch SAS/SATA/SSD/NVMe drives, and NVMe 2+4 balance Up to two M.2 2280 or 2242 SATA SSDs Hybrid configuration of different drive types |
| Certifications | CEULFCCCCCRoHS etc |
| OS | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, and VMware ESXi |
| Memory Slots | 16 DDR4 DIMM slots, up to 3200 MT/s, up to 2 TB memory capacity (configured with 128 GB memory) |
