FusionServer 5885H V6 is a 4U, 4-socket rack server designed for critical business applications with high reliability and performance requirements, as well as compute-intensive workloads such as virtualization, high-performance computing (HPC), and databases. It supports up to four Intel??Xeon??Scalable processors and 48 DDR4 DIMMs. FusionServer 5885H V6 incorporates patented technologies such as Dynamic Energy Management Technology (DEMT)?and fault diagnosis management (FDM), and can be optionally equipped with FusionDirector, a full-lifecycle management software, to effectively reduce operating expense (OPEX) and enhance return on investment (ROI).

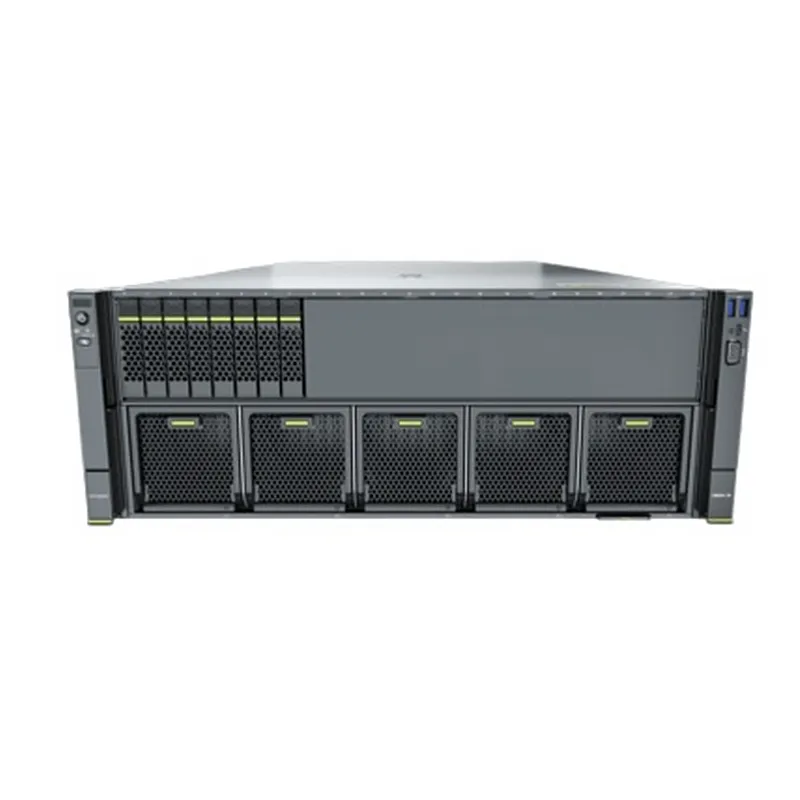

FusionServer 5885H V6 Rack Server
$Quote1 Piece(MOQ)
| Brand： | xfusion |
|---|---|
| Form Factor： | 4U |
| Products Status： | New |
| Memory： | 48 x DDR4 DIMM slots, up to 3200 MT/s; up to 24 x Intel Optane PMem modules (200 series), 2666 MT/s |
| Model： | FusionServer 5885H V6 |
| Brand | xfusion |
|---|---|
| Form Factor | 4U |
| Products Status | New |
| Memory | 48 x DDR4 DIMM slots, up to 3200 MT/s; up to 24 x Intel Optane PMem modules (200 series), 2666 MT/s |
| Model | FusionServer 5885H V6 |
| Power Supply | 4 x hot-swappable PSUs in N+N redundancy mode and the following configuration options: 2000 W AC Platinum PSUs, 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC), 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) 1500 W 380V HVDC PSUs (input: 260 V to 400 V DC) 1200 W DC PSUs (input: C38.4 V to C72 V DC) |
| Dimensions (H x W x D) | 175 mm x 447 mm x 798 mm (6.89 in. x 17.60 in. x 31.42 in.) |
| Management | BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature for smart and simplified management The FusionDirector management software can be optionally configured to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrades, enabling automatic entire-lifecycle management |
| PCIe Expansion | Up to 19 x PCIe 3.0 slots, including one dedicated PCIe slot for the OCP 3.0 NIC |
| Operating Temperature | 5C to 45C (41F to 113F), compliant with ASHRAE Classes A3 and A4 |
| Processors | 2 or 4 x 3rd Gen Intel Xeon Scalable processors (5300/6300/8300 series), TDP up to 250 W |
| Fan Modules | 5 x hot-swappable fan modules in N+1 redundancy mode |
| Local Storage | Supports hot-swappable drives with the following configuration options: 8 x 2.5 front SAS/SATA drives 24 x 2.5 front SAS/SATA drives 25 x 2.5 front SAS/SATA drives 4 x 2.5 front SAS/SATA drives and 8 x 2.5 NVMe SSDs 4 x 2.5 front SAS/SATA drives and 16 x 2.5 NVMe SSDs Flash storage: 2 x M.2 SSDs |
| RAID Support | RAID 0, 1, 10, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming, self-diagnosis, and web-based remote configuration |
