| Brand： | xfusion |
|---|---|
| Form Factor： | 4U |
| Products Status： | New |
| Memory： | 32 x DDR5 DIMMs, at 4800 MT/s |
| Chipset： | Emmitsburg PCH |

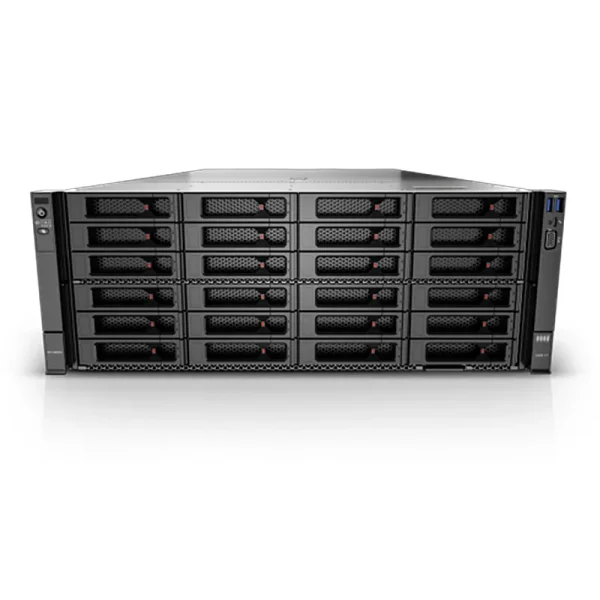

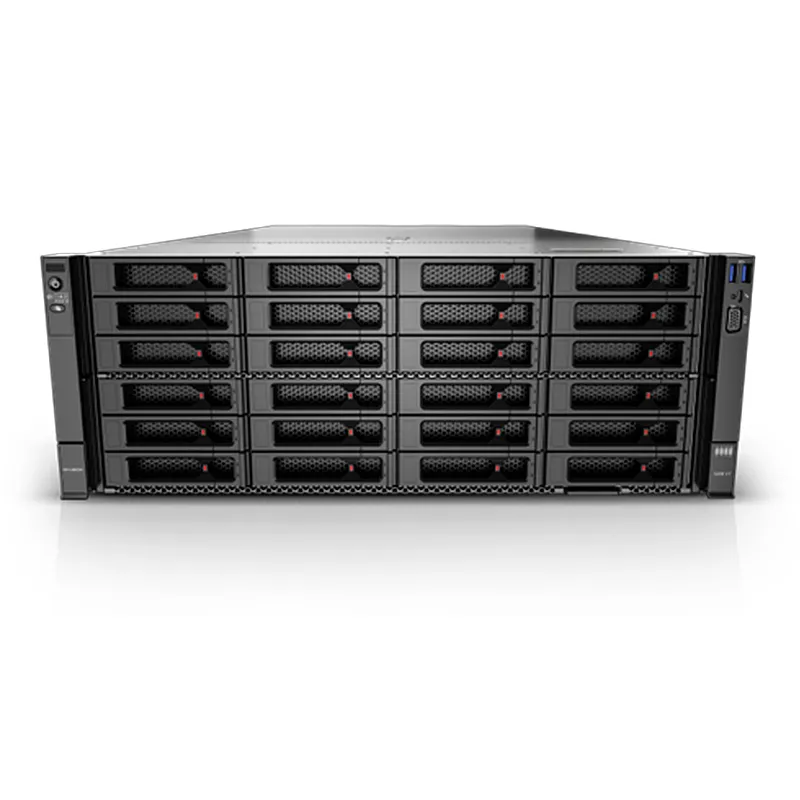

? FusionServer 5288 V7 (5288 V7) is a new-generation 4U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, distributed storage, big data processing, enterprise or telecom service applications, and other complex workloads.
? 5288 V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
| Brand | xfusion |
|---|---|
| Form Factor | 4U |
| Products Status | New |
| Memory | 32 x DDR5 DIMMs, at 4800 MT/s |
| Chipset | Emmitsburg PCH |
| Power Supply | 2 x hot-swappable PSUs in 1+1 redundancy mode. Supported options include: 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC). 1500 W AC Platinum PSUs, 1000 W (input: 100 V to 127 V AC), 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC), 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC), 1200 W C48 V to C60 V DC PSUs (input: C38.4 V to C72 V DC). 3000 W AC Titanium PSUs, 2500 W (input: 200 V to 220 V AC), 2900 W (input: 220 V to 230 V AC), 3000 W (input: 230 to 240 V AC). 2000 W AC Platinum PSUs, 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC), 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
| Dimensions (H x W x D) | Chassis with 3.5 drives: 175 mm 447 mm 798 mm (6.89 in. x 17.60 in. x 31.42 in.) |
| Management | The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management. It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle. |
| PCIe Expansion | Up to 10 x PCIe slots, including 2 x FlexIO slots dedicated for OCP 3.0 NICs and 10 x PCIe expansion slots. PCIe 5.0 is supported |
| Other Features | |
| RAID | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Processors | 1 or 2 x 4th Gen Intel Xeon Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor |
| Fan Modules | 6 or 8 x hot-swappable counter-rotating fans in N+1 redundancy |
| Local Storage | Hot-swappable drive configurations: 4 x 2.5 SAS/SATA drives/SSDs 24 to 44 x 3.5 SAS/SATA drives 8 x NVMe SSDs E1.S or E3.S SSDs* Flash storage: 2 x M.2 SSDs |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Network | Expansion capability for multiple types of networks, OCP 3.0 NICs are supported. The two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap and PCIe 5.0 are supported |
| OS | FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler |
| Certification | CE, UL, CCC, FCC, VCCI, and RoHS |
| Security | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection |
