The FusionServer 2288H V5 is an a 2U, 2-socket rack server. FusionServer 2288H V5 has been verified by Intel as an Intel??Select Solution for NFVI and it supports the configuration of over 100 types of resources with just one model, flexibly meeting the hardware resource requirements of diverse workloads. It is an ideal choice for diverse applications, such as cloud computing, virtualization, databases, HPC, and big data processing.

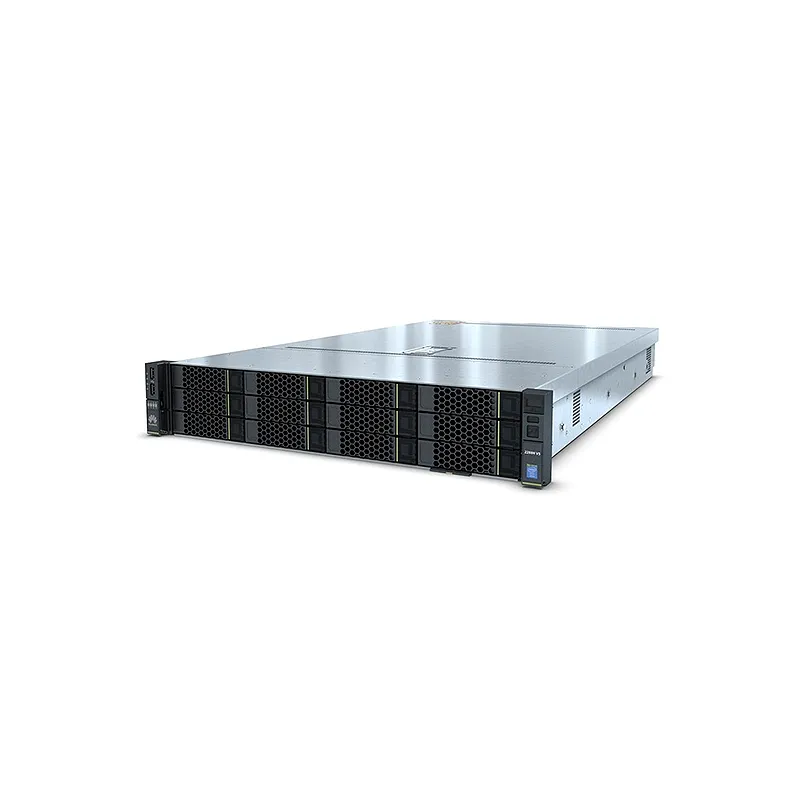

FusionServer 2288H V5 Rack Server
$Quote1 Piece(MOQ)
| Brand： | xfusion |
|---|---|
| Form Factor： | 2U |
| Products Status： | New |
| Memory： | 24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel Optane PMem modules (100 series), 2666 MT/s |
| Model： | FusionServer 2288H V5 |
| Brand | xfusion |
|---|---|
| Form Factor | 2U |
| Products Status | New |
| Memory | 24 DDR4 DIMM slots, 2933 MT/s; up to 12 Intel Optane PMem modules (100 series), 2666 MT/s |
| Model | FusionServer 2288H V5 |
| Dimensions (H x W x D) | Chassis with 3.5-inch hard drives: 86.1 mm x 447 mm x 748 mm (3.39 in. x 17.60 in. x 29.45 in.), Chassis with 2.5-inch hard drives: 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.) |
| Management | BMC integrates one dedicated management GE network port to provide comprehensive management features such as fault diagnosis, automated O&M, and hardware security hardening. BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/VNC KVM; supports CD-free deployment and the Agentless feature, simplifying management. (Optional) Configured with the FusionDirector management software to provide advanced management features such as stateless computing, batch OS deployment, and automated firmware upgrade, enabling smart and automatic entire-lifecycle management |
| PCIe Expansion | Up to 10 PCIe 3.0 slots, including 1 for a RAID controller card and 1 for a flexible NIC |
| Operating Temperature | 5oC to 45oC (41oF to 113oF), and ASHRAE A3 and A4 compliant |
| Other Features | 2-socket rack server |
| Processors | 1 or 2 1st Generation Intel Xeon Scalable processors (3100/4100/5100/6100/8100 series), up to 205W, 1 or 2 2nd Generation Intel Xeon Scalable processors (3200/4200/5200/6200/8200 series), up to 205W |
| Fan Modules | 4 hot-swappable fan modules with optional N+1 redundancy |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Internal Storage | Supports hot-pluggable drives with the following configuration options: 8 x 2.5-inch SAS/SATA HDDs or SSDs, 12/16/20 x 3.5-inch SAS/SATA HDDs, 4, 8, 12, 24, or 28 NVMe SSDs, 31 x 2.5-inch SAS/SATA HDDs or SSDs. Flash storage: 2 M.2 SSDs |
| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60, Configured with a supercapacitor for cache power-off protection (optional), RAID level migration, drive roaming, self-diagnosis, and web-based remote configuration |
| Certification | CE, UL, FCC, CCC, and RoHS |
| Network Ports | LOM: 2 x 10 GE + 2 x GE ports, Flexible NIC: 2 x GE, 4 x GE, 2 x 10 GE, 2 x 25 GE, or 1/2 x 56G FDR IB ports |
