$Quote1 Piece(MOQ)
| Brand： | xfusion |
|---|---|
| Form Factor： | 2U |
| Products Status： | New |
| Memory： | 16 x DDR5 DIMMs, delivering up to 4800 MT/s speed |
| Chipset： | Emmitsburg PCH |

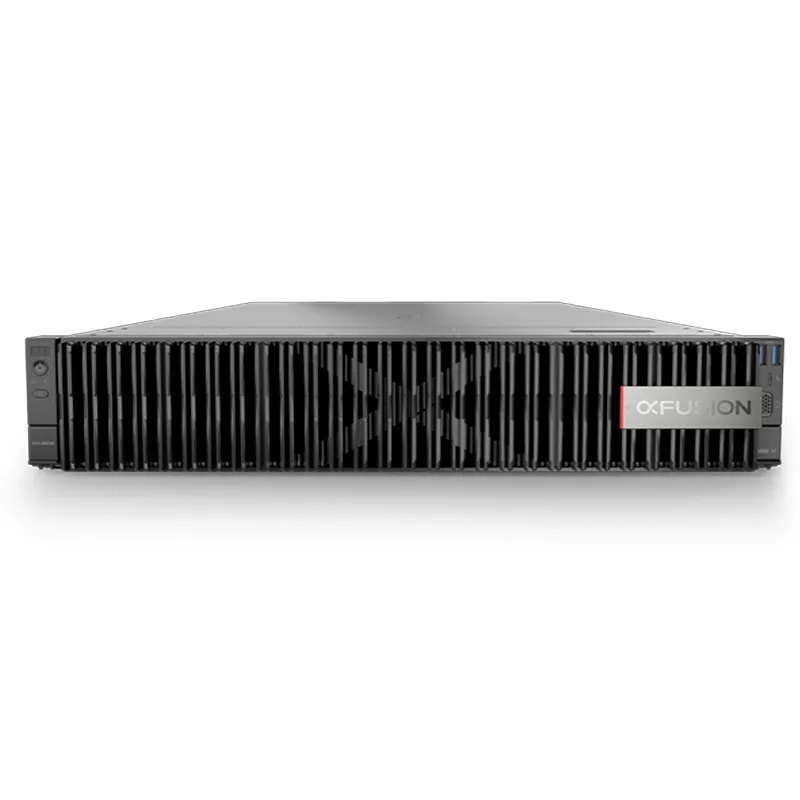

FusionServer 2288 V7 (2288 V7) is a new-generation 2U 2-socket rack server designed for the Internet, Internet Data Center (IDC), core IT services, cloud computing, virtualization, distributed storage, big data processing, enterprise or telecom service applications, and other complex workloads.
? 2288 V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.
| Brand | xfusion |
|---|---|
| Form Factor | 2U |
| Products Status | New |
| Memory | 16 x DDR5 DIMMs, delivering up to 4800 MT/s speed |
| Chipset | Emmitsburg PCH |
| Power Supply | 2 x hot-swappable PSUs in 1+1 redundancy mode. Supported options include: 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC). 1500 W AC Platinum PSUs, 1000 W (input: 100 V to 127 V AC), 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC), 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC), 1200 W C48 V to C60 V DC PSUs (input: C38.4 V to C72 V DC). 3000 W AC Titanium PSUs, 2500 W (input: 200 V to 220 V AC), 2900 W (input: 220 V to 230 V AC), 3000 W (input: 230 to 240 V AC). 2000 W AC Platinum/Titanium PSUs, 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC), 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC) |
| Dimensions (H x W x D) | Chassis with 3.5 drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.), Chassis with 2.5 drives: 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) |
| Management | The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management. It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle |
| PCIe Expansion | Up to 8 x PCIe slots, 1 x FlexIO expansion slot dedicated for OCP 3.0, 1 x expansion slot dedicated for the RAID controller card, and 6 x standard PCIe expansion slots |
| Other Features | |
| RAID | Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Processors | 1 or 2 x 4th Gen Intel Xeon Scalable processors (Sapphire Rapids) with TDP up to 225 W per processor |
| Fan Modules | 4 x hot-swappable counter-rotating fans in N+1 redundancy |
| Local Storage | Supports hot-swappable drives in the following configuration options: 8 to 31 x 2.5 SAS/SATA/SSD drives 10 to 14 x 3.5 SAS/SATA drives 4 x NVMe SSDs Up to 31 x 2.5 drives. Supports flash storage: 2 x M.2 SSDs |
| Installation Suite | L-shaped guide rails, adjustable guide rails, and holding rails |
| Network | Expansion capability for multiple types of networks, Supports OCP 3.0 NICs. One FlexIO card slot supports one OCP 3.0 NIC, which can be configured as required |
| OS | FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler |
| Certification | CE, UL, CCC, FCC, VCCI, and RoHS |
| Security | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection |
