| C9300-24T-E?Specification | |
| Part Number | C9300-24T-E |
| Product Description | Catalyst 9300 24-port data only, Network Essentials |
| Total 10/100/1000 or Multigigabit copper ports | 24 |
| Default AC power supply | 350W AC |
| Available PoE power | — |
| Cisco StackWise-480 | Yes |
| Cisco StackPower | Yes |
| Default power supply | PWR-C1-350WAC-P/2 |
| Switching capacity | 208 Gbps on 24-port Gigabit Ethernet model |
| Stacking bandwidth | 480 Gbps |
| Total number of MAC addresses | 32,000 |
| Total number of IPv4 routes (ARP plus learned routes) | 32,000 (24,000 direct routes and 8000 indirect routes) |
| IPv4 routing entries | 32,000 |
| IPv6 routing entries | 16,000 |
| Multicast routing scale | 8000 |
| QoS scale entries | 5120 |
| ACL scale entries | 5120 |
| Packet buffer per SKU | 16 MB buffer for 24- or 48-port Gigabit Ethernet models |
| FNF entries | 64,000 flow on 24- and 48-port Gigabit Ethernet models |
| DRAM | 8 GB |
| Flash | 16 GB |
| VLAN IDs | 4000 |
| Total Switched Virtual Interfaces (SVIs) | 2000 |
| Jumbo frames | 9198 bytes |
| Total routed ports per 9300 Series stack | 208 |
| Wireless bandwidth per switch | Up to 48 Gbps on 24-port Gigabit Ethernet model |
| Forwarding rate | 154.76 Mpps |
| Dimensions (H x W x D) | 1.73 x 17.5 x 17.5 Inches |
| Weight | 16.33 Pounds |
| Mean time between failures (hours) | 299,000 |
| Safety certifications | ????UL 60950-1
????CAN/CSA-C222.2 No. 60950-1 ????EN 60950-1 ????IEC 60950-1 ????AS/NZS 60950.1 ????IEEE 802.3 |
| Electromagnetic emissions certifications | ????47 CFR Part 15
????CISPR22 Class A ????EN 300 386 V1.6.1 ????EN 55022 Class A ????EN 55032 Class A ????CISPR 32 Class A ????EN61000-3-2 ????EN61000-3-3 ????ICES-003 Class A ????TCVN 7189 Class A ????V-3 Class A ????CISPR24 ????EN 300 386 ????EN55024 ????TCVN 7317 |
| Environmental | Reduction of Hazardous Substances (ROHS) 5 |

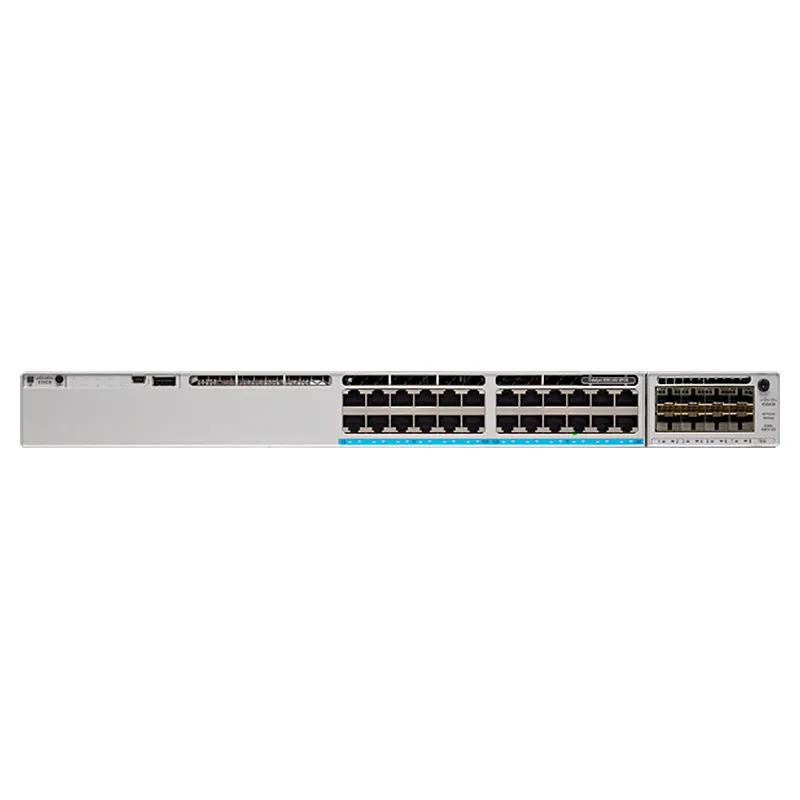

C9300-24T-E – Cisco Switch Catalyst 9300
$Quote1 Piece(MOQ)
| Series： | Cisco Catalyst 9300 Series |
|---|---|
| Model： | C9300-24T-E |
| Brand： | Cisco |
| Series | Cisco Catalyst 9300 Series |
|---|---|
| Model | C9300-24T-E |
| Brand | Cisco |
Inquire Now
