- 16GB 256-Bit GDDR6
- AMD RDNA 2

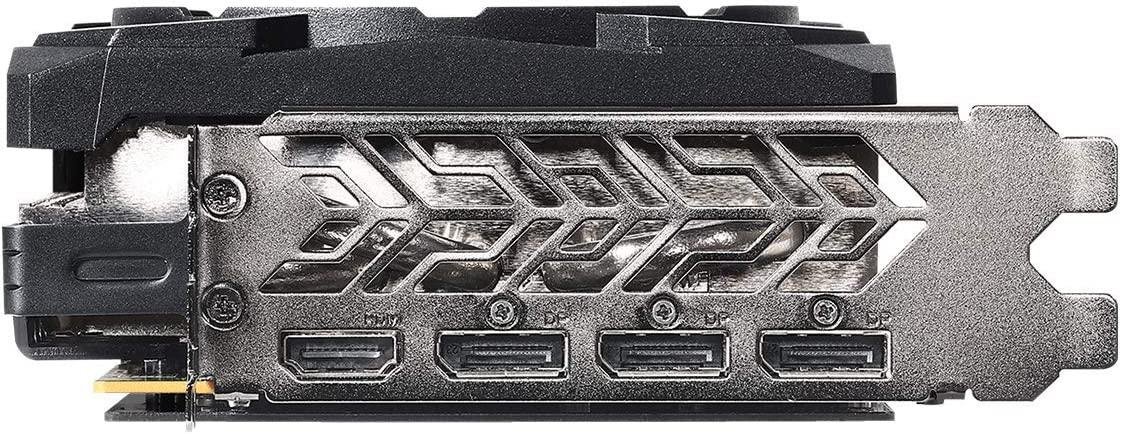

- 1 x HDMI 2.1 VRR 3 x DisplayPort 1.4 with DSC
- 3840 Stream Processors
- PCI Express 4.0 x16
ASRock Radeon RX 6800 Phantom Gaming D Gaming Graphics Card with 16GB GDDR6, AMD RDNA 2 (RX6800 PGD 16GO)
$Quote1 Piece(MOQ)
| Brand： | ASRock |
|---|---|
| Products Status： | New |
| Application： | Desktop |
| ROPs： | 96 |
| Interface： | PCIe 4.0 |
| Brand | ASRock |
|---|---|
| Products Status | New |
| Application | Desktop |
| ROPs | 96 |
| Interface | PCIe 4.0 |
| Memory Size | 16GB |
| Bus Width | 192bit |
| Cores | 3840 |
| Memory Type | GDDR6 |
| Features | 0dB Silent Cooling, Phantom Gaming 3X Cooling System, Polychrome SYNC, Reinforced Metal Frame, Striped Axial Fan, Stylish Metal Backplate, Super Alloy Graphics Card |
| GPU Series | AMD Radeon RX 6000 Series |
| Cooler | Triple Fans |
| Form Factor | ATX |
| Memory Interface | 256-bit |
| OpenGL | OpenGL 4.6 |
| Card Dimensions (L x H) | 12.01" x 5.16" |
| Series | Phantom Gaming D |
| Max Resolution | 7680 x 4320 |
| Virtual Reality Ready | Yes |
| DisplayPort | 3 x DisplayPort 1.4 with DSC |
| Boost Clock | 2190 MHz |
| HDMI | 1 x HDMI 2.1 VRR |
| GPU | Radeon RX 6800 |
| Thermal Design Power | Recommended PSU – 700W |
| Core Clock | 1850 MHz |
| Slot Width | 2.75-slot |
| DirectX | DirectX 12 Ultimate |
| Max GPU Length | 305 mm |
| Model | RX6800 PGD 16GO |
| Power Connector | 2 x 8-Pin |
| Effective Memory Clock | 16 Gbps |
| Multi-Monitor Support | 4 |
| Chipset Manufacturer | AMD |
| Stream Processors | 3840 Stream Processors |
Inquire Now
